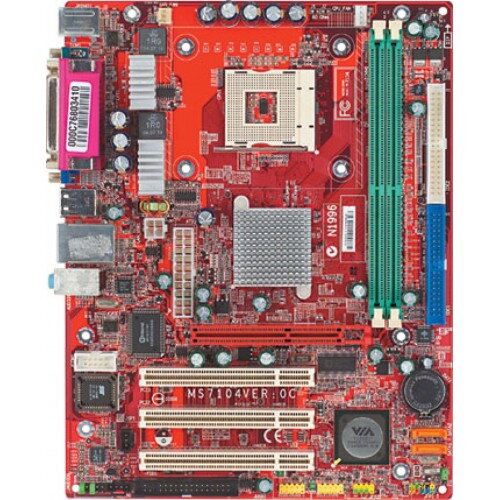

MSI PM8M-V H V3.0 MS-7104

CPU• Supports socket 478 for Intel® Pentium 4 and Celeron processors.• Supports P4 up to 3.4GHz and Celeron up to 3.2GHz.• FSB 400/533/800MHz• Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset• VIA® P4M800 Chipset- P4 processor FSB 800MHz- DDR DRAM memory DDR 333/400MHz- AGP (66MHz) for 8x/4x mode- Integrated VIA UniChrome 2D/3D graphics- Supports V-Link• VIA® VT8237R Chipset- Integrated Direct Sound AC'97 audio. - Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller.- Integrated USB 2.0 controller.- ACPI amp; PC2001 compliant enhanced power management
Main Memory
• Supports two 184-pin DDR DIMM.• Supports up to 2GB DDR333/400 DRAM.• Supports 2.5v DDR DRAM.
Slots
• One AGP (Accelerated Graphics Port) 8x/4X slot. • Three PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).
On-Board IDE
• An IDE controller on the VT8237R chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes.- Can connect up to four IDE devices.
• Serial ATA/150 controller integrated in VT8237R.- Up to 1.5Gb/s transfer rate.- Can connect up to 2 Serial ATA drives.- Supports RAID 0, 1 and RAID 0+1MSI Reminds You...• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.
Video• VIA UniChrome integrated graphics
Audio
• AC'97 link controller integrated in VIA® VT8237R• Realtek ALC655 6-channel S/W audio codec.- Compliance with AC'97 v2.2 spec.- Meets PC2001 audio performance requirement.
LAN
• Realtek 8201CL- Integrated Fast Ethernet PHY.- Supports 10Mb/s and 100Mb/s auto-negotation operation.- Compliance with PCI v2.2 and PC99 standard.- Supports ACPI power management.
Internal I/O Connectors- ATX 20-Pin power connector- 4-pin ATX 12V power connector- CPU / System fan connectors- CD-in connector- Clear CMOS jumper- SPDIF-out connector - Chassis intrusion switch connector - Serial port connector (COM2)- 2 x USB 2.0 connector support additional 4 ports- Front panel audio connector- Front panel connector- 1 x Floppy disk drive connector- 2 x Ultra DMA 133 IDE device connectors- 2 x Serial ATA device connectorsMSI Reminds You...• The floppy disk cable will be optional.
Back Panel I/O Ports- 1 x Parallel- 1 x Serial port (COM 1) - 1 x VGA - 1 x PS/2 Keyboard - 1 x PS/2 Mouse - 1 x Audio I/O (Line-in/Line-out/MIC) - 4 x USB 2.0 - 1 x RJ45 LAN Jack
BIOS• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.• The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension• 24.5 cm(L) x 19 cm(W) Micro-ATX Form FactorMounting• 6 mounting holes.
