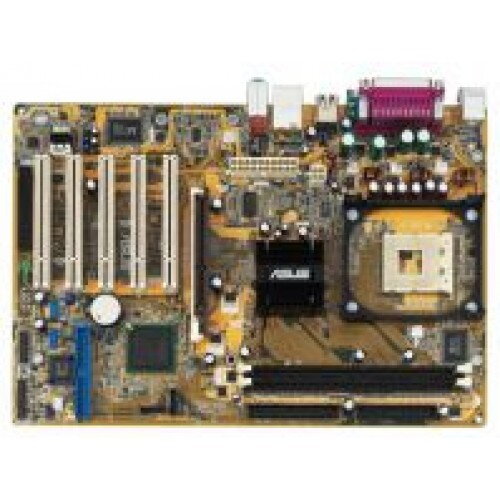

ASUS P4P800S Socket 478 mainboard

Specifications
CPU
- Socket 478 for Intel Pentium 4/ Celeron up to 3.6GHz+

- Intel Hyper-Threading Technology ready

- New power design supports Intel next generation Prescott CPU!
Chipset
Intel 848P MCH

Intel ICH5
Front Side Bus
800/533/400MHz
Memory
2 x 184-pin DIMM Sockets support max. 2GB

PC3200/PC2700/PC2100 non-ECC DDR SDRAM memory
Expansion Slots
1 x AGP 8X (0.8V, 1.5V only)

5 x PCI

1 x ASUS Wi-Fi slot for optional wireless LAN upgrade
Storage/RAID
2 x UltraDMA 100/66/33

Built-in ICH5 supports 2 x Serial ATA
Audio
- ADI AD1888 SoundMAX 6-channel audio CODEC

- support S/PDIF out interface
LAN
Realtek RTL8100C 10/100 Mbps LAN PCI controller
USB
Integrated 8 USB2.0 ports
Overclocking Features
- ASUS JumperFree

- CPU, Memory, and AGP voltage adjustable

- SFS (Stepless Frequency Selection)

- Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies.

- ASUS C.P.R. (CPU Parameter Recall)
Special Features
Support S/PDIF out Interface

ASUS C.P.R. (CPU Parameter Recall)

ASUS MyLogo2

ASUS EZ Flash

ASUS Instant Music~Lite

ASUS CrashFree BIOS 2
Back Panel I/O Ports
1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Audio I/O

1 x SPDIF out

1 x RJ45

4 x USB 2.0
Internal I/O Connectors
- 2 x USB 2.0 connector support additional 4 USB 2.0 ports

- CPU / Chassis FAN connectors

- Chassis Intrusion

- 20-pin ATX Power connector

- 4-pin ATX 12V Power connector

- S/PDIF out Interface

- CD / AUX audio in

- Game/MIDI port connector

- 20 Pin Panel connector

- Front Panel Audio connector
BIOS
4Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI, ASUS EZ Flash, CrashFree BIOS 2, ASUS MyLogo2
Industrial Standard
PCI 2.2, USB2.0
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME
Power Requirement
ATX power supply (with 4-pin 12V plug)
Support Disc
- Drivers

- ASUS PC Probe

- ASUS LiveUpdate Utility

- Trend Micro PC-cillin 2002 anti-virus software (OEM version)
Accessories
User's manual

1 x Serial ATA Power Cable

1 x 2-port USB cable

1 x UltraDMA cable

1 x FDD cable

2 x Serial ATA cable

I/O shield
Form Factor
ATX Form Factor 12"x 8.2" (30.5cm x 20.5cm)
