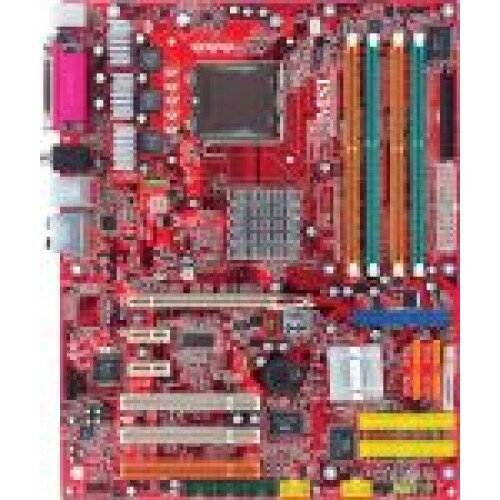

MSI 915P Combo-FR (MS-7058), 915P/ICH6 socket LGA775 zakladna doska

CPU
• Supports Intel® Pentium 4 / Celeron D processors in LGA775 package.

• Supports up to Pentium 4 5XX and Celeron D 3xx sequence processor.

• Support Intel 04B and 04A processors.

• Supports Intel Hyper-Threading Technology.

Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset
• Intel® 915P Chipset

- Supports FSB 800MHz.

- Supports PCI Express x16 interface.

- Supports DDR2 400/533 memory interface.

- Support dual channel memory architecture.



• Intel® ICH6 Chipset

- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.

- 4 Serial ATA ports with transfer rate up to 1.5Gb/s.

- 1 channel Ultra ATA 100 bus Master IDE controller.

- PCI Master v2.3, I/O APIC.

- ACPI 2.0 Compliant.



Main Memory



• Supports two DDR1 DRAM amp; two DDR2 DRAM memory modules.

• Supports up to 2GB memory size.

• Supports Dual channel DDR1 amp; DDR2 memory architecture.

• Supports DDR2 533/400MHz and up.



Slots



• One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant).

• Two PCI Express x1 slots (supports PCI Express Bus specification v1.0a compliant).

• Three 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).



On-Board IDE / SATA



• Dual Ultra DMA 66/100 IDE controllers integrated in ICH6.

- Supports PIO, Bus Master operation modes.

- Can connect up to two Ultra ATA drives.



• Serial ATA/150 controller integrated in ICH6.

- Up to 150MB/sec transfer speeds.

- Can connect up to four Serial ATA devices.



IDE RAID



• VIA6410 IDE RAID Controller

- Two Ultra DMA 66/100/133 IDE Controllers.

- Supports RAID 0, 1 and 0+1.

- Connect up to 4 Ultra ATA 133 devices.



Audio



• Azalia link controller integrated in Intel® ICH6 chipset.

• 8-channel audio codec CMedia CMI9880L.

- Compliant with Azalia 1.0 Spec.

- Supports Multi-Streaming function.

- Supports Universal Audio Jack (only Front Audio Jack).



LAN



• Marvell 8053

- PCI Express bus Spec 1.0a compliant.

- X1 PCI Express interface with 2.5 GHz signaling.

- 10/100/1000 IEEE 802.3 compliant.



On-Board Peripherals
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port

- 1 parallel port supports SPP/EPP/ECP mode

- 1 Line-In / Line-Out / MIC-In / Rear Speaker Out / Center-Subwoofer Speaker Out

/ SPDIF-Out optical and coaxial audio port

- 8 USB ports (Rear x 4 / Front x 4)

- 1 RJ-45 LAN jack
MSI Reminds You...

• The floppy disk cable will be optional.


BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 30.5 cm(L) x 24.4 cm(W) ATX Form Factor
Mounting
• 9 mounting holes.
