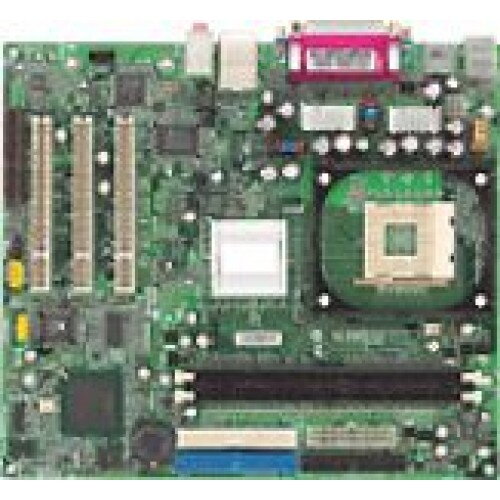

MSI 845GVM-V socket 478 Intel 845GV Micro ATX zakladna doska

Basic Specification
|
Detail Specification
CPU
• Supports Socket 478 for Intel® Pentium 4/Celeron processor

• Supports 1.4 ~ 3.06GHz and up



Chipset
• Intel® 845GV Chipset

- Integrated 2D/3D graphic controller

- Support PC2100 (DDR266) technology

- Supports 100/133MHz FSB

- Supports 400/533MHz Intel NetBurst micro-architecture bus



• Intel® ICH4 Chipset

- AC'97 2.2 interface

- 6 USB 2.0/1.1 ports

- 2 channel Ultra ATA/100 Bus Master IDE controller

- SMBus 2.0 support

- Integrated LAN controller



FSB
• Support 100/133MHz FSB

• Support 400/533MHz Intel NetBurst micro-architecture bus



Main Memory



• Supports two 184-pin DDR200/DDR266 DIMMs

• Supports Max. memory size of 2GB

• Support 2.5V DDR DIMM

• No support ECC Function


Slots



• Three PCI 2.2 32-bit Master bus slots (support 3.3v/5v)

• One CNR (Communication Network Riser) slot



On-Board IDE



• An IDE controller integrated in ICH4

• Support PIO, Bus Master and Ultra ATA66/100 operation modes

• Can connect up to four IDE devices



Video



• Integrated Intel Extreme Graphics


Audio



• 6 channels S/W audio codec Realtek ALC650

- Compliance w/AC97 v2.1 spec

- Meet PC2001 audio performance requirement



Network (Optional, 845GVM-L only)



• PCI local bus single-chip Fast Ethernet Controller

• RealTek RTL8101L with external Base-T lan transformer

- Integrated Fast Ethernet MAC and PHY in one chip.

- Supports 10Mb/s and 100Mb/s auto-negotiation operation.

- Compliance with PCI v2.2.

- Compliance with PC99 and PC2001 standard.

- Supports Wake-On-LAN and remote wake-up.

- Supports ACPI power management.



Modem (Optional, 845GVM-L only)
• Supports MSI proprietary modem card MS-6961



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M

and 2.88Mbytes

- 1 serial ports (COM A)

- 1 VGA port

- 1 parallel port

- 1 RJ-45 LAN jack (Optional)

- 1 audio/game port

- 2 USB ports



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.



Dimension
• 24.5 cm(L) x 21.4 cm(W) Micro-ATX Form Factor
Mounting
• 6 mounting holes.
