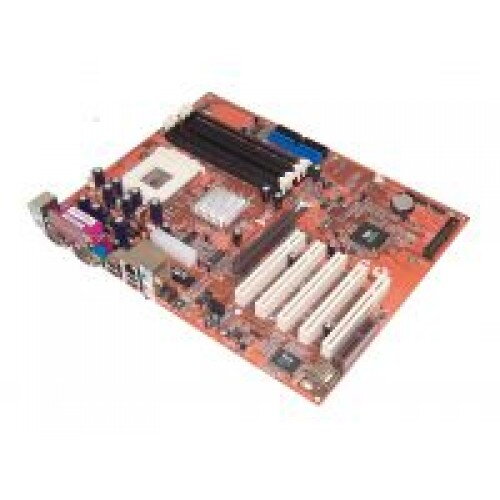

Syntax SV266A

Specifications
CPU Support
AMD Athlon (Thunderbird)
AMD Athlon XP (Palomino, Thoroughbred A, Thoroughbred B, Thorton)
AMD Duron (Spitfire, Morgan, Applebred)
Chipset
VIA KT266A (VT8366A) / VT8235
NB/SB interconnection via 4x V-Link with 266 MB/s
Supports FSB 200/266 (100/133 MHz DDR)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Universal Serial Bus (USB 2.0/1.1)
Supports up to AGP 4x (AGP 1.0/2.0, 3.3V/1.5V)
Supports PCI v2.2
Supports IDE/PATA with up to UDMA133
Memory
2 168-Pin DIMM sockets supporting SDRAM
Supports up to 2 DIMMs PC100/133
2 184-Pin DIMM sockets supporting DDR-SDRAM
Supports up to 2 DIMMs DDR 200/266
Supports up to 1 GiB DIMMs
Supports max. 2 GiB RAM
SDRAM and DDR-SDRAM can't be used simultaneously!
Audio
VT8235 integrated VIA AC'97 audio controller
C-Media CMI9738 AC'97 audio codec
AC'97 2.2 compliant
LAN
VT8235 integrated VIA Rhine II MAC / VIA VT6103 PHY
Supports 10/100M Fast Ethernet
Internal I/O
1 AGP
5 PCI
1 CNR
2 PATA/IDE
1 Floppy port
1 USB 2.0/1.1 header
1 USB 2.0 card reader header
1 FrontPanel audio header
1 IrDA TX/RX header
AUX-IN, CD-IN
Back Panel I/O
PS/2 keyboard
PS/2 mouse
4 USB 2.0/1.1 ports
1 RJ45 (LAN)
2 RS-232 ports (COM)
1 parallel port (LPT)
Audio connectors (line-out, line-in, mic-in)
BIOS
2 MBit Flash EEPROM (PLCC32)
Phoenix-Award BIOS v6.00PG
Supports Plug-and-Play (PNP)
Supports Advanced Power Management (APM)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Desktop Management Interface (DMI)
Miscellaneous
ATX form factor
20 pin ATX power connector
ITE IT8705F hardware monitoring and Super I/O chip
ICS 94228BF clock generator (PLL)
Fairchild KA7500C SMPS controller
2 3-pin FAN headers
10 mounting holes
