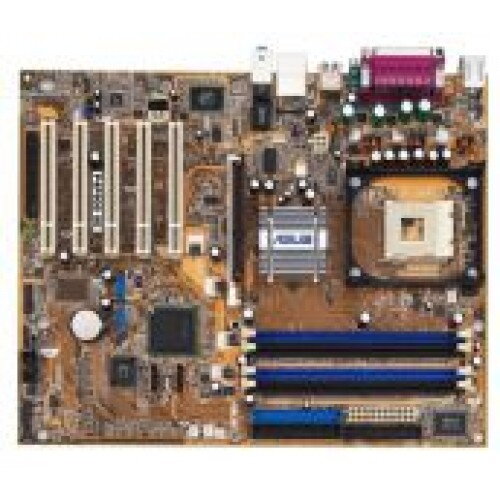

ASUS P4P800 SE 478 Intel 865PE ATX Intel Motherboard

Model
Brand
ASUS
Model
P4P800SE
Supported CPU
CPU Socket Type
478
CPU Type
Pentium 4 Prescott / Celeron D
FSB
800/533MHz
Supported CPU Technologies
Hyper-Threading Technology
Chipsets
North Bridge
Intel 865PE
South Bridge
Intel ICH5R
Memory
Number of Memory Slots
4×184pin
Memory Standard
DDR 400
Maximum Memory Supported
4GB
Channel Supported
Dual Channel
Expansion Slots
AGP Slots
1 x AGP 4X / 8X
PCI Express x16
None
PCI Slots
5
Other Slots
1 x ASUS Wi-Fi slot
Storage Devices
PATA
2 x ATA100 4 Dev. Max
SATA 1.5 Gb/s
2
SATA RAID
0/1
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
ADI AD1985
Audio Channels
6 Channels
Onboard LAN
LAN Chipset
Marvell 88E8001
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
PS/2
2
COM
1
LPT
1
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Coaxial
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor
ATX
Dimensions
12.0" x 9.6"
Power Pin
20 Pin
Packaging
Package Contents
P4P800SE

Driver Disk

User Manual

Rear I/O Panel Shield

2 x IDE/PATA Cable

2 x SATA Cable

FDD Cable

USB and Game/MIDI Bracket
