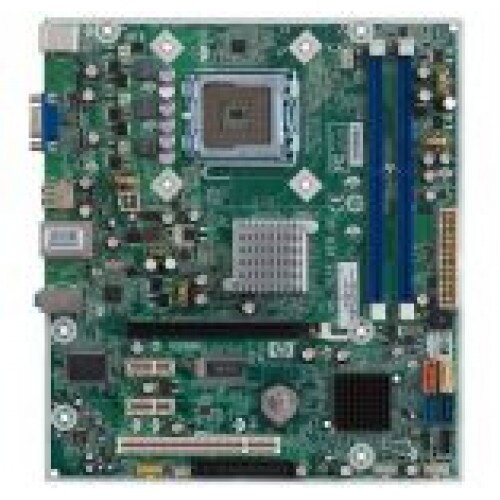

Motherboard description
Manufacturer's motherboard name: MSI MS-7525
HP/Compaq name: Boston-GL6
Form Factor
Micro-ATX: 24.4 cm (9.6 inches) x 21.9 cm (8.6 inches)
Chipset
Intel G31 Express
Front-side bus speed
800/1066/1333 MHz (processor dependent)
Processor upgrade information
Socket type: 775
Motherboard supports the following processor upgrades:
Core 2 Duo E7xxx (Wolfdale-M)
Core 2 Duo E4x00 (Conroe)
Pentium E2xxx series (Conroe)
Celeron Dual Core E1xx0 series (Conroe)
Celeron 4xx series (Conroe)
Memory upgrade information
Dual channel memory architecture
Two 240-pin DDR2 DIMM sockets
Supported DIMM types:
PC2-5300 (667 MHz)
PC2-6400 (800 MHz)
Non-ECC memory only, unbuffered
Supports 2GB DDR2 DIMMs
Supports up to 4 GB* on 32 bit PCs
32 bit PCs cannot address a full 4.0 GB of memory.
Video
Integrated graphics using Intel GMA 3100
*Integrated video is not available if a graphics card is installed.
Integrated graphics using Intel GMA 3100
Also supports PCI Express x16 graphics cards
Audio
Integrated Realtek ALC662 Audio
*Integrated video is not available if a graphics card is installed.
Audio CODEC: Realtek ALC662
5.1 channel high-definition audio
Network
LAN: 10-Base-T
Interface: Integrated into motherboard
Technology: Realtek 8101E
Data transfer speeds: up to 10/100Mb/s
Transmission standards:10-Base-T Ethernet
Expansion Slots
One PCI Express x16
Two PCI Express x1
One PCI
I/O Ports
Back I/O ports
Figure 2: Back I/O panel
1 - PS/2 mouse (green)
2 - Video Graphics Adapter
3 - RJ-45 Network (LAN)
4 - Audio: Line In (light blue)
5 - Audio: Line Out (lime)
6 - Audio: Microphone (pink)
7 - USB 2.0: 4
8 - PS/2 keyboard (purple)
Internal Connectors
One 24-pin ATX power connector
One 4-pin ATX power connector
Four SATA connectors
One floppy drive connector
Two 12v fan connectors for CPU fan and PC fan
One 9-pin header for power button, reset button, power LED, and HDD LED
Two USB 2.0 headers supporting 4 USB ports or devices
One SPDIF audio output connector
One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)
One jumper for resetting BIOS settings
One jumper to disable BIOS password checking
Manufacturer's motherboard name: MSI MS-7525
HP/Compaq name: Boston-GL6
Form Factor
Micro-ATX: 24.4 cm (9.6 inches) x 21.9 cm (8.6 inches)
Chipset
Intel G31 Express
Front-side bus speed
800/1066/1333 MHz (processor dependent)
Processor upgrade information
Socket type: 775
Motherboard supports the following processor upgrades:
Core 2 Duo E7xxx (Wolfdale-M)
Core 2 Duo E4x00 (Conroe)
Pentium E2xxx series (Conroe)
Celeron Dual Core E1xx0 series (Conroe)
Celeron 4xx series (Conroe)
Memory upgrade information
Dual channel memory architecture
Two 240-pin DDR2 DIMM sockets
Supported DIMM types:
PC2-5300 (667 MHz)
PC2-6400 (800 MHz)
Non-ECC memory only, unbuffered
Supports 2GB DDR2 DIMMs
Supports up to 4 GB* on 32 bit PCs
32 bit PCs cannot address a full 4.0 GB of memory.
Video
Integrated graphics using Intel GMA 3100
*Integrated video is not available if a graphics card is installed.
Integrated graphics using Intel GMA 3100
Also supports PCI Express x16 graphics cards
Audio
Integrated Realtek ALC662 Audio
*Integrated video is not available if a graphics card is installed.
Audio CODEC: Realtek ALC662
5.1 channel high-definition audio
Network
LAN: 10-Base-T
Interface: Integrated into motherboard
Technology: Realtek 8101E
Data transfer speeds: up to 10/100Mb/s
Transmission standards:10-Base-T Ethernet
Expansion Slots
One PCI Express x16
Two PCI Express x1
One PCI
I/O Ports
Back I/O ports
Figure 2: Back I/O panel
1 - PS/2 mouse (green)
2 - Video Graphics Adapter
3 - RJ-45 Network (LAN)
4 - Audio: Line In (light blue)
5 - Audio: Line Out (lime)
6 - Audio: Microphone (pink)
7 - USB 2.0: 4
8 - PS/2 keyboard (purple)
Internal Connectors
One 24-pin ATX power connector
One 4-pin ATX power connector
Four SATA connectors
One floppy drive connector
Two 12v fan connectors for CPU fan and PC fan
One 9-pin header for power button, reset button, power LED, and HDD LED
Two USB 2.0 headers supporting 4 USB ports or devices
One SPDIF audio output connector
One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)
One jumper for resetting BIOS settings
One jumper to disable BIOS password checking
