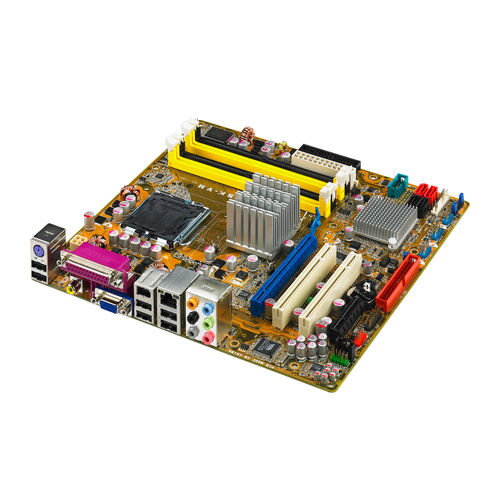

ASUS P5K-VM REV. 10.03G

CPUIntel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors Compatible with Intel® 05B/05A/06 processorsSupport Intel® 45nm CPUSupport Intel® next generation 45nm Multi-Core CPU * Please update the latest BIOS to support Intel 45nm CPU ChipsetIntel G33 Intel ICH9 Intel Fast Memory Access Technology Front Side Bus1333/1066/800 MHzMemory4 x DIMM, Max. 8 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory Dual Channel memory architecture*The chipset officially supports the memory frequency up to DDR2 800. Due to the tuning by ASUS exclusive technology, this motherboard natively supports up to DDR2 1066MHz. Please refer to www.asus.com or user manual for Memory QVL **When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.VGAIntegrated Intel® Graphics Media Accelerator 3100 High-definition video processing with a maximum resolution of 2048 x 1536 bpp @75 Hz Maximum shared memory of 256 MB Supports Microsoft® DirectX® 9, OpenGL® 1.5, Pixel Shader 2.0Expansion Slots1 x PCIe x16 1 x PCIe x4 2 x PCIStorageSouthbridge 4 xSATA 3 Gb/s ports JMicron® JMB368 PATA controller 1 xUltraDMA 133/100/66 for up to 2 PATA devices LANMarvell88E8056® PCI-E Gigabit LAN controllersPCIe Gigabit LAN controller featuring AI NET2 AudioRealtek ALC 883 8 -Channel High-Definition Audio CODEC Coaxial / Optical S/PDIF out ports at back I/O Support Jack-Sensing, Enumeration, Multi-streamingS/PDIF out on back I/O portIEEE 1394VIA VT6308S controller supports 2 x 1394a ports (one at midboard; one at back panel)USB12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)ASUS Unique FeaturesASUS Crystal Sound- ASUS Noise FilterASUS EZ DIY- ASUS Q-Connector- ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 Overclocking FeaturesASUS Super Memspeed Technology vCore: Adjustable CPU voltage at 0.0125V increment SFS (Stepless Frequency Selection) - FSB tuning from 200MHz up to 800MHz at 1MHz increment - Memory tunning from 667MHz up to 1333MHz for DDR2 - PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment Overclocking Protection: - ASUS C.P.R.(CPU Parameter Recall)Back Panel I/O Ports1 x D-Sub 1 x Parallel 1 x PS/2 Keyboard 1 x S/PDIF Out (Coaxial) 1 x IEEE 1394a 1 x LAN(RJ45) port 6 x USB 2.0/1.1 8 -Channel Audio I/O Internal I/O Connectors3 x USB connectors support additional 6 USB ports 1 x Floppy disk drive connector 1 x IDE connector 4 x SATA connectors 1 x IEEE 1394a connector 1 x CPU Fan connector 1 x Chassis Fan connector 1 x Power Fan connector 1 x S/PDIF Out connector 1 x4-pin ATX 12V Power connector 24 Power connector 1 x AP Trigger connector Front panel audio connectorCOM connectorChassis Intrusion connectorCD/AUX audio inSystem Panel BIOS8 Mb Flash ROM DMI 2.0AMI BIOS PnPWfM 2.0 SM BIOS 2.3 ACPI 2.0a ASUS EZ Flash 2 ASUS CrashFree BIOS 3ManageabilityWfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXEO/S CompatibilityWindows VistaWindows XPAccessoriesUser's manual1 x UltraDMA 133/100/66 cable 1 x Floppy disk drive cable 2 x SATA cable 1 2-port SATA power cable I/O Shield3 in 1 Q-connector Support DiscDriversASUS PC Probe || Anti-virus software (OEM version)ASUS UpdateForm FactoruATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
