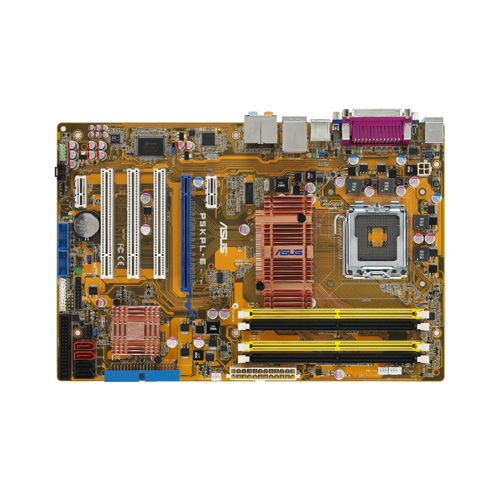

ASUS P5KPL-E

CPU
Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors

Compatible with Intel® 05B/05A/06 processors

Support Intel® 45nm CPU
Chipset
Intel G31

Intel ICH7

Front Side Bus
1333/1066/800 MHz
Memory
4 x DIMM, Max. 4 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

*Support max. 2 DIMM modules when over-clock to DDR2-1066

**When installing four DDR2 DIMM modules, install only single-sided memory modules.

***When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16 slot for discrete graphics card

2 x PCIe x1 slot

3 x PCI 2.2
VGA
Integrated Intel® Graphics Media Accelerator 3100 Graphics

Max. resolution: 2048 x 1536 x 75 bpp

Max. refresh rate: 2048 x 1536 @75Hz
Storage
Southbridge

1 xUltraDMA 100/66/33

4 xSATA 3 Gb/s ports
LAN
PCIe Gigabit LAN controller featuring AI NET2
Audio
Realtek ALC883, 8 -Channel High-Definition Audio CODEC

Support Jack-Sensing, Multi-streaming, Jack-Retasking
USB
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
TPM
1 x TPM connector (Support Win XP, Vista)
ASUS Unique Features
ASUS AI Lifestyle

- ASUS AI Gear 2- ASUS AI Nap

ASUS EZ DIY

- ASUS Q-Connector

- ASUS O.C. Profile

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2
Special Features
ASUS MyLogo 2

All High-quality Conductive Polymer Capacitors
Overclocking Features
Precision Tweaker

- vDIMM: 8 -step DRAM voltage control

- vCore: Adjustable CPU voltage at 0.0625V increment

- vChipset 4-step Chipset voltage control

SFS (Stepless Frequency Selection)

- FSB tuning from 133MHz up to 800MHz at 1MHz increment

- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x Parallel

1 x VGA

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x LAN(RJ45) port

4 x USB 2.0/1.1

1 x COM port

8 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors supports additional 4 USB 2.0 ports

1 x Floppy disk drive connector

1 x IDE connector

4 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x S/PDIF Out connector

1 x4-pin ATX 12V Power connector

24 Power connector

Front panel audio connector

Chassis Intrusion connector

CD/AUX audio in

System Panel
BIOS
8 Mb Flash ROM

DMI 2.0

PnP

WfM 2.0

SM BIOS 2.3

Award BIOS

ACPI 2.0
Manageability
WOL by PME,WOR by PME, PXE
O/S Compatibility
Windows Vista

Windows XP

Windows 2000
Accessories
User's manual

1 x UltraDMA 133/100/66 cable

1 x Floppy disk drive cable

2 x SATA cable

1 x 2-port SATA power cable

I/O Shield

2 in 1 Q-connector (USB and system panel; Retail version only)
Support Disc
Drivers

ASUS PC Probe II

Anti-virus software (OEM version)

ASUS Update
Form Factor
ATX Form Factor

12 inch x 8 inch ( 30.5 cm x 20.3 cm )
