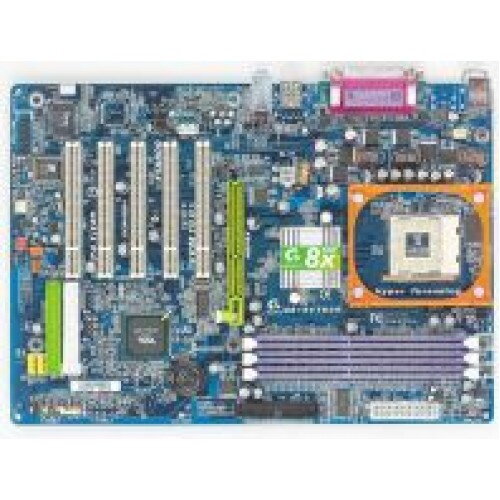

GA-8VT800 (rev. 1.0)

CPU
Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor
Front Side Bus
800/533/400 MHz FSB
Chipset
North-bridge: VIA PT800
South-bridge: VIA VT8235(CE)
REALTEK ALC655 codec chip
Memory
Type:DDR400/ DDR333/ DDR266
Max capacity: 3GB
DIMM slots:3 (DDR400 up to 2 DIMMs only)
Expansion Slots
1 x AGP 8X/4X slot
5 x PCI slots (PCI 2.2 compliant)
Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x LPT port
2 x COM ports
3 x Audio ports(Line-in /Line-out / Mic)
2 x PS/2 ports(Keyboard/Mouse)
BIOS
2M bit flash ROM
Bundle Software
Norton Internet Security
Norton Anti-Virus™
Norton™ Personal Firewall
Norton™ Privacy Control
Norton™ Parental Control
Norton™ Spam Alert
GIGABYTE Windows Utility Manager
Adobe Acrobat Reader
Form Factor
ATX
30.5 x 21.5 cm
H/W Monitoring
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, power-in voltage,CPU voltage, and fan speed
Internal I/O Connectors
2 x USB 2.0/1.1 connectors (4 ports by cable)
S/P DIF input/output pin header (by optional cable)
2 x UDMA ATA 133/100/66 Bus Master IDE connector
1 x FDD connector
CD/AUX in
1 x Game/Midi connector (by optional cable)
Other Features
Suspend to RAM (STR)
Xpress3
EasyTuneTM4
@BIOS
Q-FlashTM
