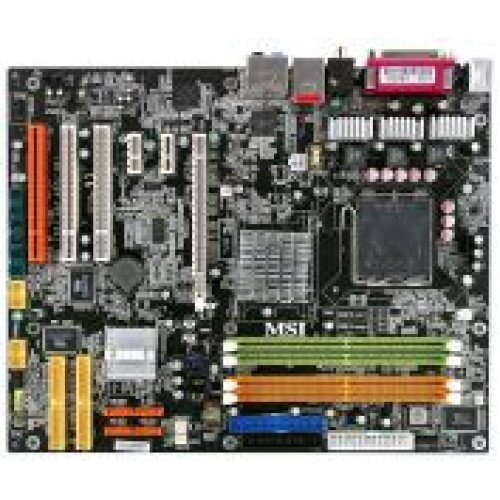

MSI 915P Neo2 Platinum LGA 775

CPU
• Supports Intel® Pentium 4 / Celeron D processors in LGA775 package.

• Supports up to Pentium 4 5XX and Celeron D 3xx sequence processor.

• Support Intel 04B and 04A processors.

• Supports Intel Hyper-Threading Technology.

Please refer to CPU Support for compatible CPU; the above description is for reference only.

MSI Reminds You...

1. Because of the limitations of chipset, this MB does not support Win98/ME.

2. Intel 915P Series board supports Win2000/XP only.


Chipset
• Intel® 915P Chipset

- Supports FSB 800MHz.

- Supports PCI Express x16 interface.

- Supports DDR2 400/533 memory interface.



• Intel® ICH6R Chipset

- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.

- 4 Serial ATA ports with transfer rate up to 1.5Gb/s.

- 1 channel Ultra ATA 100 bus Master IDE controller.

- PCI Master v2.3, I/O APIC.

- ACPI 2.0 Compliant.

- Serial ATA 150 RAID 0, RAID 1 and Matrix RAID.

- Integrated AHCI controller.



Main Memory



• Supports four unbuffered DIMM of 1.8 Volt DDR2 DRAM

• Supports up to 4GB memory size.*

• Supports Dual channel DDR2 memory architecture.

• Supports DDR2 400/533 memory interface.



*Depending on the type of memory used, it is not always possible to physically address the entire 4GB, you may found that you can only address up to 3.5GB, 3.8GB etc. This is a chipset limitation rather than BIOS or motherboard design.



Slots



• One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant).

• Two PCI Express x1 slots (supports PCI Express Bus specification v1.0a compliant).

• Three 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).



On-Board IDE / SATA



• Dual Ultra DMA 66/100 IDE controllers integrated in ICH6R.

- Supports PIO, Bus Master operation modes.

- Can connect up to two Ultra ATA drives.



• Serial ATA/150 controller integrated in ICH6R.

- Up to 150MB/sec transfer speeds.

- Can connect up to four Serial ATA devices.

- Supports AHCI controller with SATA Raid 0, Raid 1 and Matrix Raid.

- Supports SATA hot plug.



IDE RAID



• VIA6410 IDE RAID Controller

- Two Ultra DMA 66/100/133 IDE Controllers.

- Supports RAID 0, 1 and 0+1.

- Connect up to 4 Ultra ATA 133 devices.



Audio



• Azalia link controller integrated in Intel® ICH6R chipset.

• 8-channel audio codec CMI9880L.

- Compliant with Azalia 1.0 Spec.

- Supports Multi-Streaming function.

- Supports Universal Audio Jack (only Front Audio Jack).



LAN



• Broadcom BCM5751 PCI-E Gb LAN Controller

- PCI Express bus Spec 1.0a compliant.

- x1 PCI Express interface with 2.5 Gb/s bandwidth.

- 10/100/1000 IEEE 802.3 compliant.



On-Board Peripherals
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port

- 1 parallel port supports SPP/EPP/ECP mode

- 1 Line-In / Line-Out / MIC-In / Rear Speaker Out / Center-Subwoofer Speaker Out

/ SPDIF-Out optical and coaxial audio port

- 8 USB ports (Rear x 4 / Front x 4)

- 1 RJ-45 LAN jack

- 3 IEEE 1394 connectors



BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
• 30.5 cm(L) x 24.4 cm(W) ATX Form Factor
Mounting
• 9 mounting holes.
