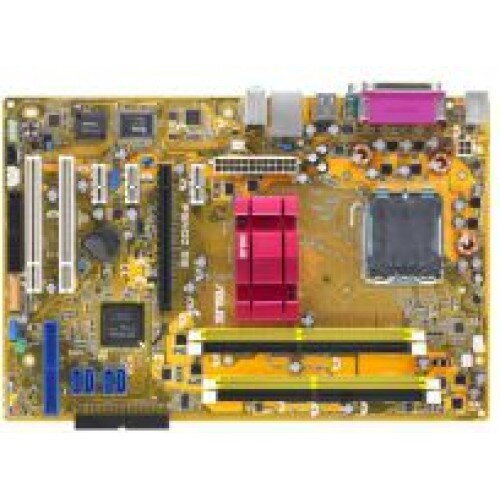

ASUS P5ND2 SE

Specifications
CPU
Intel Socket 775 Pentium® D/Pentium® 4/Celeron Processors

Intel® EM64T / EIST / Hyper-Threading Technology

New power design supports Intel® next generation 04B/04A amp; 05B/05A CPU
Chipset
NVIDIA Crush19 Ultra

MCP51

Front Side Bus
800/533/ MHz
Memory
4 x DIMM, Max. 16 GB, DDR2 667/533/400/ Non-ECC,Un-buffered Memory

Dual Channel memory architecture
Expansion Slots
1 x PCIe x16

3 x PCIe x1

2 x PCI
Storage
Southbridge

2 xUltraDMA 100/66/33

4 xSATA 3 Gb/s ports

Support RAID 0,1,5,10,JBOD
Audio
ADI1986A 6 -Channel Audio CODEC

S/PDIF out on back I/O port

Jack Sensing and Enumeration
LAN
RTL88E8001 PCI-E Gigabit/ LAN controller
USB
8 USB 2.0 ports
Overclocking Features
Intelligent overclocking tools

- ASUS AI Booster Utility

Precision Tweaker

- vDIMM: 4 -step DRAM voltage control

- vCore: Adjustable CPU voltage at 0.025V increment

- vChipset 2-step Chipset voltage control

2-step Chipset voltage control

4-step DRAM voltage control

SFS (Stepless Frequency Selection)

- FSB tuning from from 133MHz up to 400MHz at 1MHz increment

- Adjustable FSB/DDR ratio. Fixed PCI/PCIe frequencies

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS MyLogo 2

ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel

1 x Audio I/O

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Serial port

1 x S/PDIF Out

1 x LAN(RJ45) port

4 x USB 2.0/1.1
Internal I/O Connectors
2 x USB connectors supports additional 4 USB ports

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x S/PDIF Out connector

1 x4-pin ATX 12V Power connector

24 -pin ATX Power connector

Front panel audio connector

Game/MIDI port connector

Power LED connetor

CD/AUX audio in
Manageability
WOL by PME,WOR by PME, WOW
BIOS
4 Mb Flash ROM

DMI 2.0

AMI BIOS

PnP

WfM 2.0

SM BIOS 2.3

ASUS EZ Flash

ASUS MyLogo 2

ASUS CrashFree BIOS 2
Support Disc
Drivers

Anti-virus software (OEM version)

ASUS LiveUpdate Utility

ASUS AI Booster

RAID Drivers
Accessories
User's manual

USB2.0 module

1 x UltraDMA 133/100/66 cables

1 x Floppy disk drive cables

2 x SATA cables

2 SATA power cables

I/O Shield
Form Factor
ATX Form Factor

12 inch x 7.5 inch ( 30.5 cm x 19 cm )
