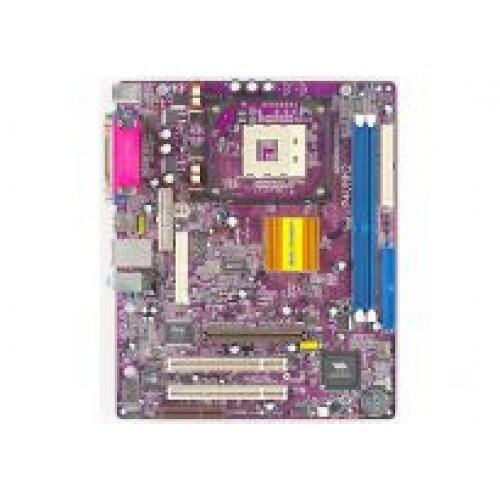

ECS Elitegroup P4VMM2 V:7.1

CPU º Socket 478 for latest Intel Pentium 4 / Celeron processor
º FSB 533/400 MHz
CHIPSET º VIA® P4M266A amp; VT8235
º North Bridge: VIA® P4M266A
º South Bridge: VIA® VT8235
GRAPHICS º Integrated S3 ProSavage8 2D/3D Graphics
MEMORY º 2 x 184-pin DDR DIMM socket support up to 2 GB
º Support DDR333*/266 DDR SDRAM ( * means overclocking )
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT º 1 x AGP 4X slot
º 2 x PCI slots
º 1 x CNR slot
STORAGE º Support by VIA® VT8235
• 4 x Ultra DMA133/100/66 devices
AUDIO º VIA® VT1612A 2-channel audio CODEC
º Compliant with AC'97 2.2 specification
LAN º VIA® VT6103 10/100 Mbps Fast Ethernet PHY
REAR PANEL I/O º 1 x PS/2 keyboard amp; PS/2 mouse connectors
º 4 x USB ports
º 1 x RJ45 LAN connector
º 1 x VGA port
º 1 x Parallel port (LPT)
º 1 x Serial port (COM1)
º 1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS amp; HEADERS º 1 x 20-pin ATX Power Supply Connector amp; 4-pin 12V Connector
º 1 x FDD connector supports one 360K~2.88MB FDD
º 2 x IDE connectors
º 1 x IrDA for SIR header
º 1 x Speaker header
º 1 x USB 2.0 header support additional 2 USB ports
º 1 x USB card reader header
º 1 x Front panel switch/LED header
º CD in1/CD in2 header
º CPUFAN/SYSFAN connectors
SYSTEM BIOS º Award BIOS with 2Mb Flash ROM
º Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
º Supports ACPI revision 1.0 specification
FORM FACTOR º Micro-ATX Size, 244mm*204mm
