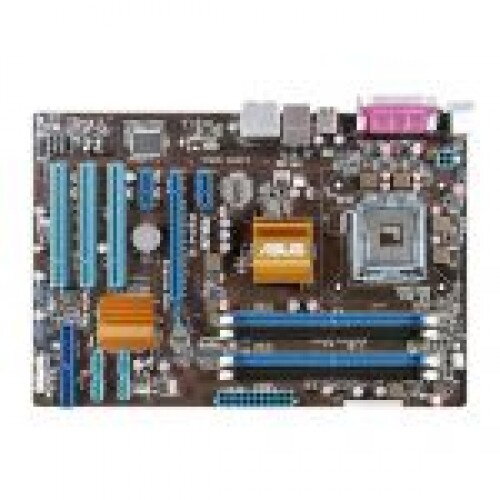

ASUS P5P41D LGA775

Specifications
CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core/Celeron Processors

Support Intel® 45nm Multi-Core CPU

Intel® Hyper-Threading Technology ready

Support Enhanced Intel SpeedStep Technology (EIST)

*Refer to www.asus.com for Intel CPU support list
Chipset
Intel® G41 / ICH7
Front Side Bus
1333/1066/800 MHz
Memory
4 x DIMM, Max. 8 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

*Only the blue slots support memory overclocking to 1066 MHz.

**Due to chipset limitation, this motherboard only supports up to the total of 4 ranks (4 sides in total) of RAM at max.

***Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots
1 x PCIe x16

2 x PCIe x1

3 x PCI
Storage
Southbridge

1 xUltraDMA 100/66/33

4 xSATA 3 Gb/s ports
LAN
PCIE Gb LAN
Audio
ALC887 8-Channel High-Definition Audio CODEC
USB
8 USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS CrashFree BIOS 3

ASUS AI NET2

ASUS Q-Fan

ASUS EZ Flash 2

ASUS MyLogo 2

ASUS Turbo Key

ASUS Express Gate

ASUS EPU 4 Engine
Back Panel I/O Ports
1 x Parallel port

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x S/PDIF Out (Optical)

1 x LAN(RJ45) port

4 x USB 2.0/1.1

1 x COM port

8 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Front panel audio connector

1 x S/PDIF Out connector

1 x 24-pin EATXPWR Power connector

1 x 4-pin ATX 12V Power connector

4 x Serial ATA connectors

1 x System Panel connector

1 x IDE connector
BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI 2.0, Wfm2.0, ACPI 2.0, SMBIOS 2.5
Manageability
WOL, PXE, RPL, WOR by Ring, PME Wake Up
Accessories
User's manual

1 x I/O Shield

1 x UltraDMA 133/100/66 cable

2 x SATA cable(s)
Support Disc
Drivers

ASUS PC Probe II

Anti-virus software (OEM version)

ASUS Update
Form Factor
ATX Form Factor

12 inch x 8.2 inch ( 30.5 cm x 20.8 cm )
