CPU

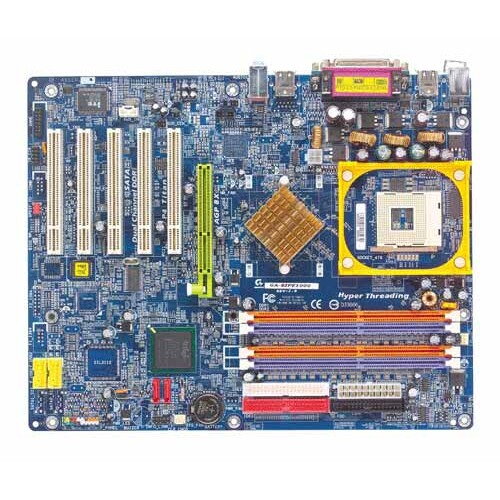

Socket 478 for Intel® Pentium® 4 processor.
Chipset
North Bridge : Intel® 865PE MCH
South Bridge : Intel® ICH5
Integrated Peripherals :
Realtek Gigabit Ethernet Controller
Realtek ALC850 CODEC
Front Side Bus
800 / 533/400 MHz FSB
Memory
Type: Dual Channel DDR 400 / 333 / 266 support
Max capacity: 4 GB*
DIMM slots: 4
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
Internal I/O Connectors
2 x Serial ATA ports
2 x UltraDMA 100/66 Bus Master IDE
1 x FDD
2 x USB 2.0 (supports 4 ports by cable)
CD/AUX in
1 x Game port pin header
Expansion Slots
1 x AGP 8x slot
5 x PCI slots (PCI 2.3 compliant)
Back Panel Connectors
4 x USB 2.0 ports
1 x RJ45 Lan port
1 x LPT port
2 x COM ports
3 x Audio ports (Line-in / Line-out / MIC)
2 x PS/2 ports (Keyboard/Mouse)
Form Factor
ATX
30.5cm x 23.0cm
H/W Monitoring
ITE 8712F
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
BIOS
3M bit flash ROM, Award BIOS
Other Features
Xpress Install
Xpress Recovery 2
Xpress BIOS Rescue
EasyTune⢠4
@BIOS
Q-Flashâ¢
Bundle Software
Norton Internet Security 2003
Norton Anti Virusâ¢
Norton⢠Personal Firewall
Norton⢠Privacy Control
Norton⢠Parental Control
Norton⢠Spam Alert
GIGABYTE Windows Utility Manager
Adobe Acrobat Reader
Driver
Intel® chipset software installation utility
Realtek LAN driver
Realtek audio driver
USB2.0 driver
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
