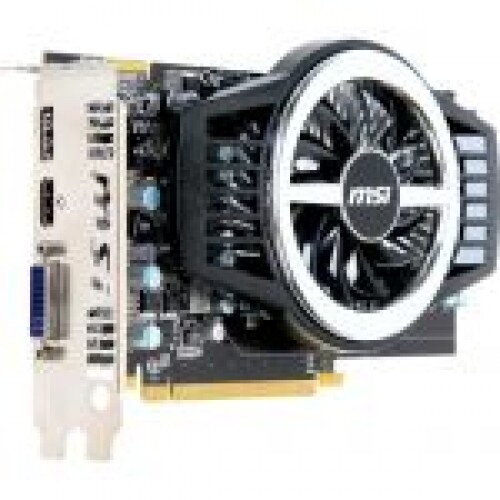

MSI R5770-PMD1G Radeon HD 5770 1GB 128-bit GDDR5 PCI Express 2.0 x16

Graphics Engine
ATI Radeon HD 5770
Bus Standard
PCI Express x16 2.1
Memory Type
GDDR5
Memory Size(MB)
1024
Memory Interface
128bit
Core Clock Speed(MHz)
850
Memory Clock Speed(MHz)
4800
Memory Bandwidth(GB/sec)
N/A
Texture Fill Rate(billion/sec)
N/A
DVI Output
1
D-SUB Output
1(optional, via DVI to D-Sub adaptor)
TV-Output
N/A
HDMI-Output
1
Mini HDMI-Output
N/A
DisplayPort
Y
Mini DisplayPort
N/A
VIVO(Video-in/out)
N/A
HDTV Support
N/A
HDCP Support
Y
Dual-link DVI
Y
HDMI Support
Y
Display Ouput(Max Resolution)
2560x1600
RAMDACs
400
DirectX Version Support
11
OpenGL Version Support
3.2 (Driver support scheduled for release in 2010.)
CrossFire Support
Y
SLI Support
N/A
HyperMemory Tech.
N/A
3-way SLI
N/A
TurboCache tech.
N/A
Card Dimension(mm)
208x111x31mm
Weight
395g
GPU Features
‧Microsoft DirectX 11 Support

‧ATI Eyefinity Technology

‧ATI Stream Technology

‧40 nm Process Technology

‧Advanced GDDR5 Memory Technology

‧2nd Generation TeraScale Engine

‧Microsoft Windows 7 support

‧ATI CrossFireX™ Technology

‧Enhanced Anisotropic Filtering

‧Accelerated Video Transcoding

‧HDMI 1.3 Support

‧Dolby TrueHD and DTS-HD Master Audio Support

‧ATI PowerPlay™ Technology Enhanced Support for GDDR5 memory

‧ATI Avivo™ Technology Enhanced Unified Video Decoder 2 (UVD 2)

• All brand name amp; products are registered trademarks of their respective companies.

• All Chipset specs are derived from ATI data sheet. For your reference only.
