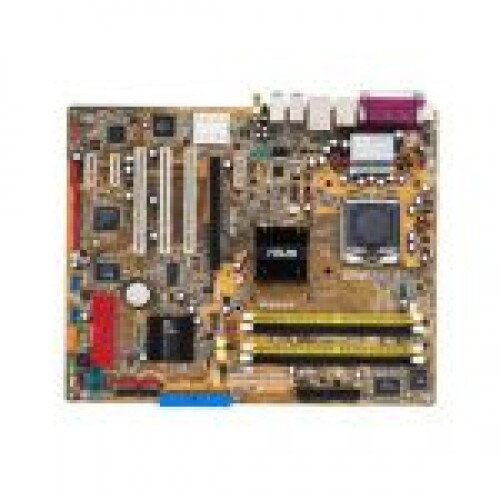

ASUS P5GD2 Deluxe

Specifications
CPU
LGA775 socket for Intel® Pentium 4/Celeron CPU

Compatible with Intel® 04B and 04A processors

Intel® Hyper-Threading Technology ready

Support Intel EM64T and EIST technology
Chipset
Intel® 915P

Intel® ICH6R
Front Side Bus
800 / 533 MHz
Memory
Dual channel memory architecture

4 x 240-pin DIMM sockets support max. 4GB DDR2 533/400 non-ECC memory
Expansion Slots
1 x PCI Express x16 slot for discrete graphics card

3 x PCI Express x1

3 x PCI
Storage/RAID
Intel® ICH6R South Bridge:

*1 x UltraDMA 100/66/33

*4 x Serial ATA with IntelR Matrix Storage Technology with RAID 0, 1 support

Silicon Image® RAID controller:

*4 x Serial ATA with JBOD, RAID 0, 1, 10, 5 (RAID 5 software patch available, no WHQL)

ITE IDE RAID controller:

* 2 x UltraDMA 133/100/66 with JBOD, RAID 0, 1, 0+1 support
LAN
Marvell® 88E8053 PCI-E Gigabit LAN Controller, features AI NET2
Wireless LAN
54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps 802.11b

*Access Point function (under WinXP, 2003)

*Bundle an external antenna

*One-touch wizard

*Wireless bridge, a.k.a. WDS or wireless repeater (under WinXP, 2003)
Audio
C-Media High Definition Audio 8-channel CODEC

Coaxial, Optical S/PDIF out on back I/O port

Features Dolby® Digital Live technology
IEEE 1394
TI 1394 controller supports 2 x 1394 ports
USB
Max. 8 USB2.0 ports
ASUS AI Proactive Features
AI NOS™ (Non-delay Overclocking System)

AI NET2 network diagnosis before entering OS

WiFi-g™ powered by WiFi@HOME? technology

Stack Cool™ patented fanless cooling system
Overclocking Features
AI NOS™ (Non-delay Overclocking System)

AI Overclocking (intelligent CPU frequency tuner)

CPU, Memory, and PCIe x16 voltage adjustable

SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment

Adjustable FSB/DDR ratio. Fixed PCI/PCIe frequencies.

ASUS AI Booster utility

ASUS C.P.R.(CPU Parameter Recall)
Other ASUS Special Features
CrashFree BIOS 2

Q-Fan2

Post Reporter

Multi-language BIOS

MyLogo2
BIOS
8 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
Back Panel I/O Ports
1 x Parallel

1 x WLAN antenna jack (optional)

1 x Optical + 1 x Coaxial S/PDIF Output

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x RJ45

4 x USB 2.0/1.1

1 x IEEE1394a

8-Channel Audio I/O
Internal I/O Connectors
2 x USB 2.0 connectors supports additional 4 USB 2.0 ports

1 x LAN connector

1 x IEEE1394 connectors

1 x COM connector

1 x GAME/MIDI connector

CPU / 2 x Chassis / Power Fan connectors

Front panel High Definition Audio connector

Chassis Intrusion connector

CD audio-in connector

24-pin ATX Power connector

4-pin ATX 12V Power connector
Support Disc
Drivers

ASUS PC Probe

ASUS LiveUpdate Utility

Anti-virus software (OEM version)
Accessories
InterVideo® WinDVD Suite (OEM version)

1 x Wireless LAN antenna (optional)

1 x IEEE1394 port

6 x Serial ATA cables

3 x 2-port SATA power cable

1 x 2-port USB2.0 / Game module

1 x COM Port module

2 x UltraDMA 133/100/66 cable

1 x IDE cable

1 x FDD cable

1 x I/O Shield

User's manual
Form Factor
ATX Form Factor, 12" x 9.6" (30.5cm x 24.5cm)
