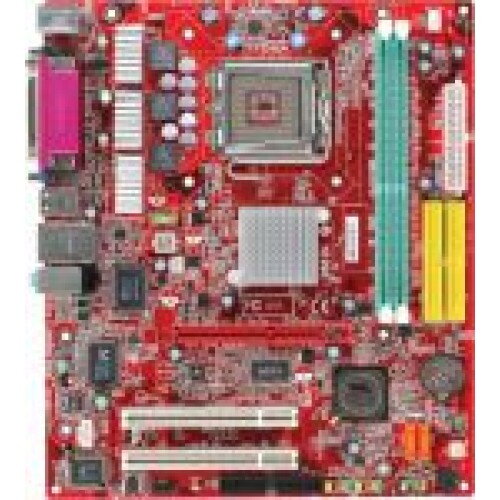

MSI PM8M3-V v4.1

CPU
⢠Supports Intel® Pentium 4 / Celeron D processors in LGA775 package.

⢠Supports up to Pentium 4 5XX, 6XX(90nm) and Celeron D 3xx sequence processor.

⢠Supports Intel Hyper-Threading technology.

⢠Supports up to 3.8GHz, FSB@800/533MHz

Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset
⢠VIA® P4M800CE Chipset

- P4 processor FSB 800MHz

- DDR DRAM memory DDR 333/400MHz

- 32-bit AGP (66MHz) for 8x/4x mode

- Supports 8X V-Link
⢠VIA® VT8237R plus Chipset

- Integrated Hardware Sound Blaster/Direct Sound AC'97 audio.

- Dual channel Ultra DMA 66/100/133 master mode EIDE controller.

- Integrated USB 2.0 controller.

- ACPI amp; PC2001 compliant enhanced power management



Main Memory



⢠Supports four memory banks using two 184-pin DDR DIMM.

⢠Supports up to 2GB DDR333/400 DRAM.

⢠Supports 2.5v DDR DRAM.



Slots



⢠One AGP (Accelerated Graphics Port) 8x/4X slot.

⢠Two PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface)(for PCB V1.0 and V3.0).

⢠Three PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface)(for PCB V4.0).



On-Board IDE



⢠An IDE controller on the VT8237R plus chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66 operation modes.

- Can connect up to four IDE devices.



⢠Serial ATA/150 controller integrated in VT8237R plus.

- Up to 1.5Gb/s transfer rate.

- Can connect up to 2 Serial ATA drives.

- Supports RAID 0, 1
MSI Reminds You...

⢠The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.


Video
⢠S3 UniChrome Pro integrated graphics



Audio



⢠AC'97 link controller integrated in VIA® VT8237R plus

⢠Realtek ALC655 6 channel S/W audio codec.

- Compliance with AC'97 v2.2 spec.

- Meets PC2001 audio performance requirement.


LAN



⢠Realtek 8100C

- Supports 10Mb/s and 100MB/s auto-negotation operation.

- Compliance with PCI v2.2 and PC99 standard.

- Supports ACPI power management.



Internal I/O Connectors
- ATX 24-Pin power connector

- 4-pin ATX 12V power connector

- CPU / System / Power connectors

- CD-in connector

- AUX-in connector

- Clear CMOS jumper

- Chassis intrusion switch connector

- BIOS flash jumper

- SPDIF-out connector

- Serial port connector (COM2)

- 2 x USB 2.0 connector support additional 4 ports

- Front panel audio connector

- Front panel connector

- 1 x Floppy disk drive connector

- 2 x Ultra DMA 133 IDE device connectors

- 2 x Serial ATA device connectors
MSI Reminds You...

⢠The floppy disk cable will be optional.


Back Panel I/O Ports
- 1 x Parallel

- 1 x Serial port (COM 1)

- 1 x VGA

- 1 x PS/2 Keyboard

- 1 x PS/2 Mouse

- 1 x Audio I/O (Line-in/Line-out/MIC)

- 4 x USB 2.0

- 1 x RJ45 LAN jack



BIOS
⢠The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices

and expansion cards of the board automatically.

⢠The mainboard provides a Desktop Management Interface (DMI) function which records

your mainboard specifications.



Dimension
⢠24.5 cm(L) x 21.0 cm(W) Micro-ATX Form Factor
Mounting
⢠6 mounting holes.
