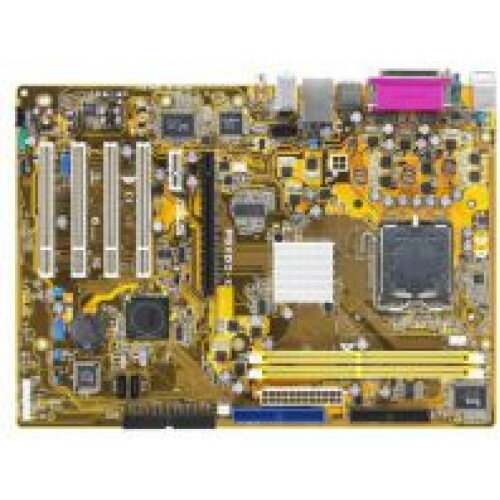

ASUS P5VD2-X LGA775 mainboard

Specifications
CPU
Intel Socket 775 Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron Processors

Compatible with Intel® 05B/05A/06 processors

Intel® Hyper-Threading Technology ready

* Refer to www.asus.com for Intel CPU support list
Chipset
VIA PT890

VIA VT8237A
Front Side Bus
1066/800/533/ MHz
Memory
2 x DIMM, Max. 4 GB, DDR2 533/ Non-ECC,Un-buffered Memory

* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots
1 x PCIe x16

1 x PCIe x1

4 x PCI 2.2
Storage
Southbridge

2 xUltraDMA 133/100/

2 xSATA 1 Gb/s ports JMicron® JMB363 PATA and SATA controller

Support RAID 0,1,JBOD
LAN
Realtek RTL8110SC Gigabit/ LAN
Audio
Realtek ALC883 6 -Channel High Definition Audio CODEC

Coaxial / Optical S/PDIF out ports

Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
USB
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Overclocking Features
SFS (Stepless Frequency Selection)

- FSB tuning from 133MHz up to 350MHz at 1MHz increment
Special Features
ASUS MyLogo

ASUS EZ Flash 2

ASUS CrashFree BIOS 3

ASUS C.P.R.(CPU Parameter Recall)

ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x External SATA

1 x S/PDIF Out

1 x LAN(RJ45) port

4 x USB 2.0/1.1

1 x COM port

6 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports

1 x Floppy disk drive connector

2 x IDE connector

3 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x S/PDIF Out connector

1 x4-pin ATX 12V Power connector

24 -pin ATX Power connector

Front panel audio connector

CD/AUX audio in

System Panel Connector
BIOS
4 Mb Flash ROM

DMI

PnP

WfM

SM BIOS

Award BIOS

ACPI 2.0a

ASUS EZ Flash 2

ASUS CrashFree BIOS 3
Manageability
WOL by PME,WOR by PME,
Accessories
User's manual

x UltraDMA 133/100/66 cables

x Floppy disk drive cables

x SATA cables

SATA power cables

I/O Shield
Support Disc
Drivers

ASUS PC Probe II

Anti-virus software (OEM version)

ASUS Update

Adobe Acrobat Reader

Microsoft Direct X ver 9.0C
Form Factor
ATX Form Factor

12inchx8.6inch ( 30.5cm x21.8cm )
