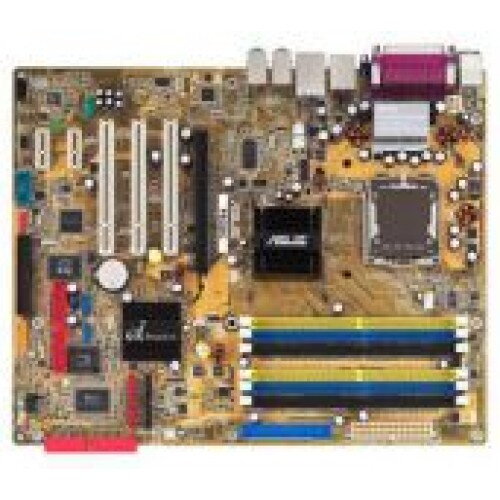

ASUS P5GDC Deluxe

CPU
Intel Socket 775 Pentium® 4/Celeron Processors

Intel® Hyper-Threading Technology ready

Compatible with Intel® 04B and 04A processors

Support Intel EM64T and EIST technology
Chipset
Intel 915P

ICH6R

Front Side Bus
800/533/ MHz
Memory
Dual Channel memory architecture

2 x 240-pin DIMM sockets support max. 2GB DDR2 533/400 non-ECC memory

4 x 184-pin DIMM Sockets support max. 4GB DDR 400/333 non-ECC memory

(Note: DDR and DDR2 memory can not be used simultaneously)
Expansion Slots
1 x PCIe 2.0 x16 slot for discrete graphics card

2 x PCIe x1

3 x PCI
Storage
Southbridge

1 xUltraDMA 100/66/33

4 xSATA 3 Gb/s ports Support RAID 0,1,

ITE® IDE RAID controller

2 xUltraDMA 133/100/66/

Support RAID 0,1,0+1,JBOD
LAN
Marvell® 88E8053 PCIe Gigabit/ LAN Controller, features AI NET2
Audio
C-Media High Definition Audio 8 -Channel CODEC

Coaxial / Optical S/PDIF out ports

Features Dolby Digital Live technology
IEEE 1394
TI 1394 controller supports 2 x 1394a ports
USB
8 USB 2.0 ports
ASUS AI Proactive Features
AI NOS™ (Non-delay Overclocking System)

AI NET2 network diagnosis before entering OS

Stack Cool™ patented fanless cooling system
Overclocking Features
Intelligent overclocking tools

- AI Overclocking (intelligent CPU frequency tuner)

- ASUS AI Booster Utility

- ASUS AI NOS (Non-delay Overclocking System)



SFS (Stepless Frequency Selection)

- FSB tuning from 100MHz up to 400MHz at 1MHz increment

- CPU, Memory, and PCIe x16 voltage adjustable

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS

ASUS MyLogo

ASUS CrashFree BIOS 2

ASUS Q-Fan 2
BIOS
4 Mb Flash ROM

DMI 2.0

AMI BIOS

PnP

WfM 2.0

SM BIOS 2.3
Back Panel I/O Ports
1 x Parallel

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x S/PDIF Out

1 x IEEE 1394a

1 x LAN(RJ45) port

4 x USB 2.0/1.1

8 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors supports additional 4 USB 2.0 ports

1 x IEEE 1394a connector

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x4-pin ATX 12V Power connector

24 -pin ATX Power connector

Front panel audio connector

COM connector

Game/MIDI port connector

Chassis Intrusion connector

CD/AUX audio in
Support Disc
Drivers

ASUS PC Probe

Anti-virus software (OEM version)

ASUS LiveUpdate Utility
Accessories
User's manual

x IDE cables

USB2.0 module

x UltraDMA 133/100/66 cables

x Floppy disk drive cables

x SATA cables

SATA power cables

I/O Shield

IEEE 1394 port module

InterVideo® WinDVD Suite (OEM version)

COM Port module
Form Factor
ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
