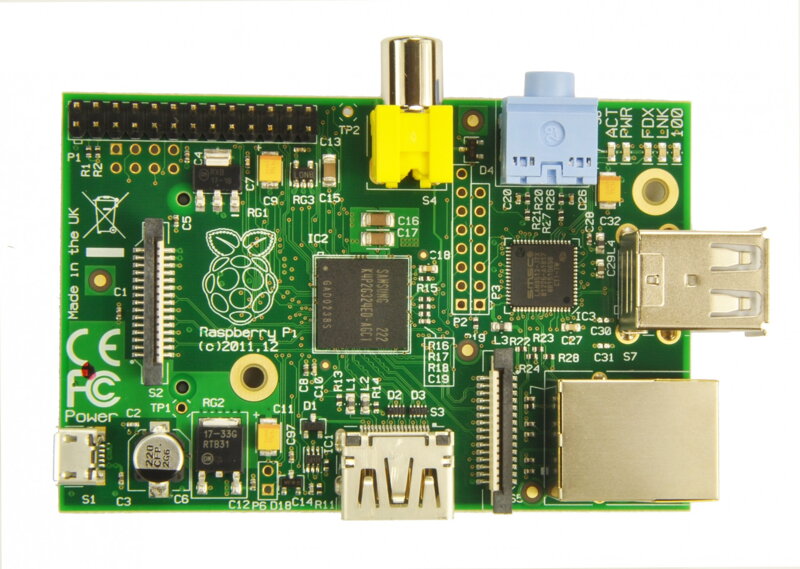

RASPBERRY Pi 1 Model B

Vrátane priesvitného púzdra

Memory
512MB RAM

Connections
2 USB ports

Ethernet port

3.5mm jack for audio out

HDMI

Composite Video

Processor
SoC is a Broadcom BCM2835

This contains an ARM1176JZFS (ARM11 using an ARMv6-architecture core) with floating point, running at 700Mhz, and a Videocore 4 GPU.

GPU

The first version of the GPU used came out in 2009.

Capable of BluRay quality playback, using H.264 at 40MBits/s.

Has a fast 3D core accessed using the supplied OpenGL ES2.0 and OpenVG libraries.

Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode.

Capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute and features a bunch of texture filtering and DMA infrastructure.

That is, graphics capabilities are roughly equivalent to Xbox 1 level of performance.

Overall real world performance is something like a 300MHz Pentium 2, only with much, much swankier graphics.

Operating Temperature Range
Limiting Components

The LAN9512 (USB and Ethernet IC) is specified as 0°C to 70°C (the commercial temperature range part is used on the RPi – part number is "LAN9512-JZX", not "LAN9512i-JZX" indicating industrial temperature range)
