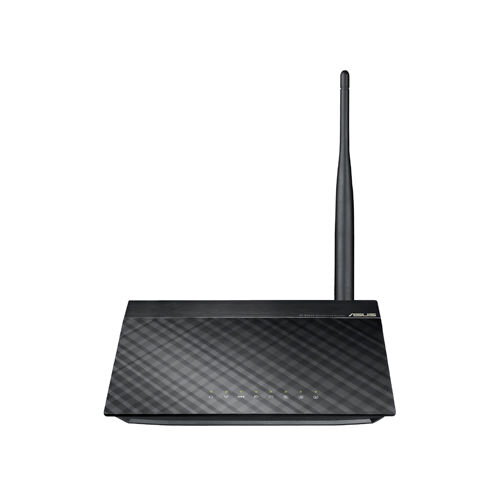

ASUS RT-N10E

Network Standard
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4
Product Segment
N150 instant easy access; 150Mbps
Data Rate
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 150Mbps
Antenna
External 5 dBi antenna x 1
*Antenna type will differ according to local regulations and requirement in each country
Operating Frequency
2.4GHz
Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support
Firewall & Access Control
Firewall: NAT and SPI (Stateful Packet Inspection)
Filtering: Port, IP packet, URL Keyword, MAC address
Management
DHCP, System Event Log
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Utilities
Device Discovery
Firmware Restore
Setup Utility
Ports
1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for LAN
Button
WPS Button, Reset Button, Power Button
LED Indicator
PWR x 1
LAN x 4
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current
OS Support
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Linux
Environmental
Operating Temperature: 0 °C to 45 °C ( °F to ºF)
Storage Temperature: -20 ° to 70 ° C ( °F to °F)
Operating Humidity: 10 % to 90 % (Non-condensing)
Storage Humidity: 5 % to 90 % (Non-condensing)
Dimensions
168 x 124 x 30 mm (LxWxH)
Weight
210 g
