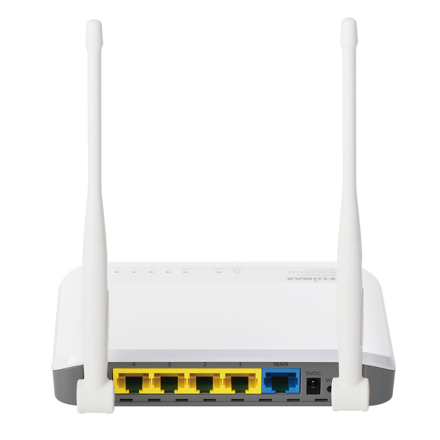

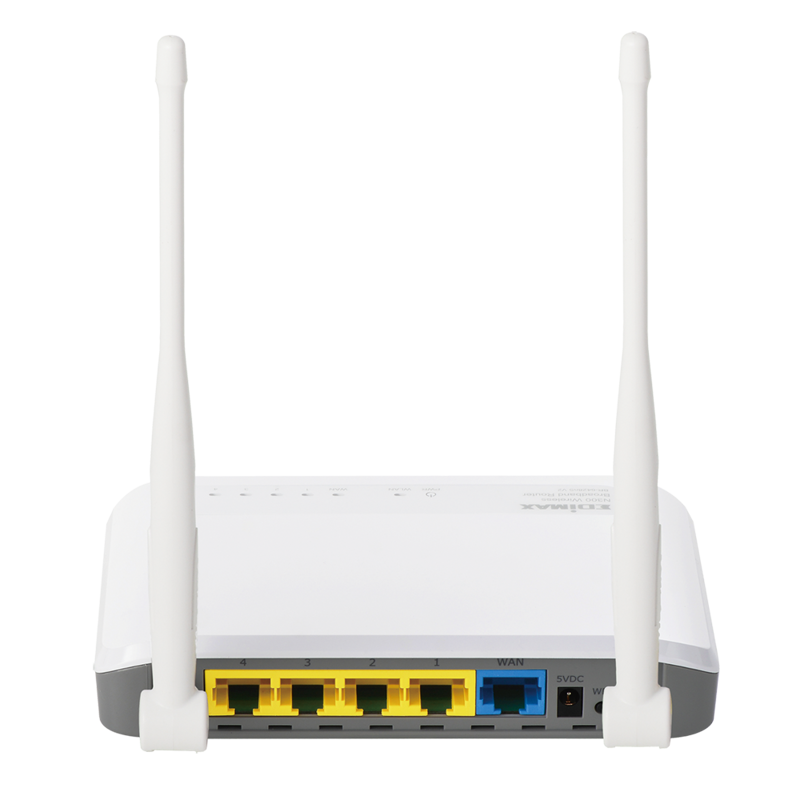

Edimax BR-6428nS V2

SPECIFICATIONS​
​

FUNCTIONS
HARDWARE INTERFACE
MANAGEMENT
•Supports router, access point & range extender modes
•Port triggering for special applications
•DDNS and SIP
•Guest network
•Virtual server and DMZ hosting
•MAC/IP filter and URL blocking
•Static routing
•UPnP architecture
•VPN pass-through (IPSec/PPTP)
• Wi-Fi schedule control
•1 x RJ-45 Fast Ethernet WAN port
•4 x RJ-45 Fast Ethernet LAN port
•LED Indicators: power, wireless, WAN, LNK/ACT for LAN
•2 x 5dBi fixed antennas
•WPS/Reset button
•Intuitive user interface
•System status and security log (web interface)
•Firmware upgradeable
WAN
SECURITY
OUTPUT POWER & RECEIVE SENSITIVITY
•Supports WISP connection mode
•Supports RJ-45 cable/xDSL modem
•WAN protocol: PPPoE, static IP, dynamic IP, PPTP and L2TP
•NAT/NAPT IP sharing
•WEP, WPA & WPA2 encryption
•DHCP server/client
•QoS for critical operations
•SPI anti-DoS firewall
•E.I.R.P: < 20dBm
•11b(11Mbps): -83dBm±2dBm
•11g(54Mbps): -71dBm±2dBm
•11n(20MHz): -68dBm±2dBm
•11n(40MHz): -64dBm±2dBm
MEMORY
INSTALLATION KIT
HUMIDITY & TEMPERATURE
•4MB NOR Flash
•16MB RAM
•Smart iQ Setup, no CD required
•Supports smartphone, tablet or laptop setup. (iOS 4 or Android 4 and above are required for smartphone or tablet setup.)
•10-90% (non-condensing)
•0-40oC
POWER ADAPTER
DIMENSIONS & WEIGHT
CERTIFICATIONS
•DC 5V, 1A
•135 (W) mm x 110 (D) mm x 28 (H) mm
•161g (antenna weight included)
•CE, FCC

​
PACKAGE CONTENT

Multi-function Wi-Fi router
Quick installation guide
CD with multi-language QIG and user manual
Ethernet cable
Power adapter (5V, 1A)
