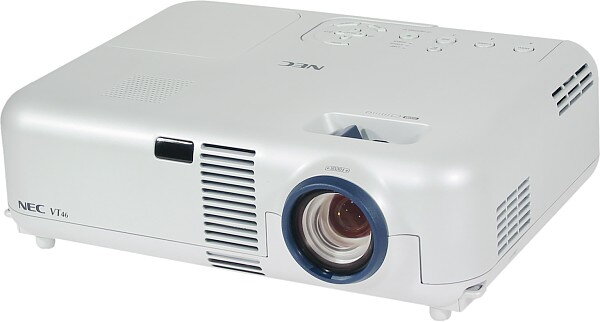

NEC VT46

Nabehanych 2965 hodin.

Specifications
Model Name VT46
LCD Panel*1 0.7" (800 x 600) p-Si TFT Active-matrix LCD x 3
Lens Manual Zoom (Range 1 To 1.2 )(F 1.7 To 2.0) / Manual Focus (f=21.6 mm To 25.9 mm)
Lamp 160 W DC
Lamp Life*2 3,000 H
Image Size 21 To 300"
Light Output 1,200 ANSI lumens
Resolution Native Resolution SVGA (800 x 600)
Maximum Resolution UXGA (1,600 x 1,200) With Advanced AccuBlend
Contrast Ratio 400 : 1
Optical Unit Light Gate, Integrator, XDP
Synchronization
Range Horizontal 15 kHz To 100 kHz (RGB : 24 kHz or over)
Vertical 50 Hz To 120 Hz
Video Bandwidth RGB 80 MHz
Colour Reproduction Full Colour, 16.7 Million Colours Simultaneously
Input Terminals 1 RGB Input 1 D-Sub Mini 15 pin RGBHV VGA, SVGA, XGA, SXGA, UXGA
RGB 0.7 Vp-p/75 Ω
H/V Sync 4.0 Vp-p/TTL Polarity
Composite Sync 4.0 Vp-p/TTL Level
Sync on G 0.3 Vp-p/75 Ω Negative Polarity
1 Stereo Mini Jack Stereo L/R 0.5 Vrms/22 kΩ or over
1 Component Input
(Sharing With RGB) 1 D-Sub Mini 15 pin(Sharing With RGB) Y 1.0 Vp-p/75Ω (With Sync)
Cb·Cr (Pb·Pr) 0.7 Vp-p/75Ω
1125i (1080i), 750p (720p), 625p(576p)525p
(480p), 525i (480i) /60Hz
1080 i/50 Hz, Progressive PAL-scan/50 Hz
DVD Component Video Signal (15 kHz)
1 Stereo Mini Jack(Sharing With RGB) Stereo L/R 0.5 Vrms/22 kΩ or over
1 Video Input 1 RCA pin Composite
Video NTSC/NTSC4.43/PAL/PAL-N/
PAL-M/PAL-60/SECAM
1.0 Vp-p/75Ω
2 RCA pin Stereo L (Mono)/R 0.5 Vrms/22 kΩ or over
1 S-Video Input 1 Mini DIN-4 pin Y 1.0 Vp-p/75 Ω
C 0.286 Vp-p/75 Ω
2 RCA pin Stereo L (Mono)/R 0.5 Vrms/22 kΩ or over
Built-In Speaker 1 W
Extemal Control
Terminal PC Control 1 Mini DIN 8pin RS-232 C, IR
Keystone Correction Manual V max ±30 degrees
Environment Operational Temperatures 32° To 95° F(0° To 35° C), 20% To 80% Humidity (Non-Condensing)
Storage Temperatures 14° To 122° F(-10° To 50° C), 20% To 80% Humidity (Non-Condensing)
Power Requirement 100 To 120 V AC, 200 To 240 V AC, 50 Hz/60 Hz
Power Consumption 220 W / 7.5 W (Standby)
Input Current 2.3 A (100 To 120 V AC) / 1.1 A (200 To 240 V AC)
Regulations Meets FCC Class B Requirements
Quietness 32 dB
Dimensions (WxHxD) 310 mm x 89 mm x 230 mm (Not Including Protrusions)
Net Weight 2.9 kg
