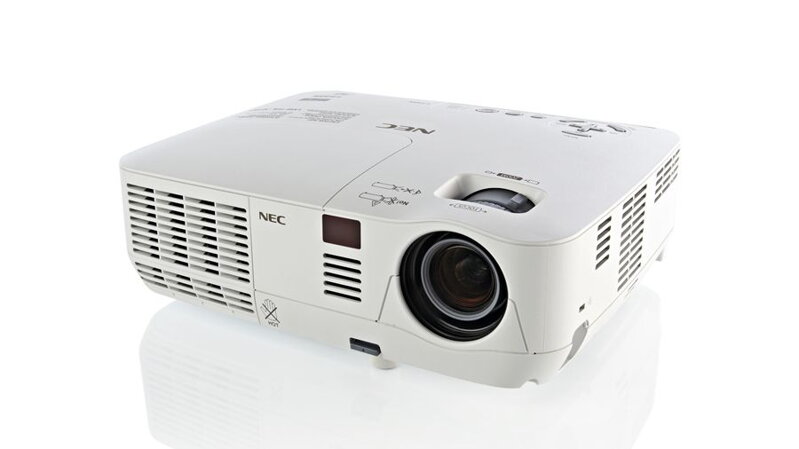

NEC V300W

nabehanych 854 hodin

Product Specifications

Optical

Display Technology DLP (0.55" DMD)
Light Output(Lumens) 3000 normal / Eco = approx. 80% of normal mode
Resolution
Native WXGA 1280 x 800
Maximum UXGA 1600 x 1200

Contrast Ratio (up to) 2000:1
Lamp Type 225W AC
Lamp Life (up to) 3000 hours normal / 5000 hours eco
Screen Size (diagonal) 33 to 300 in. / 0.84 to 7.6m
Throw Ratio 1.95 to 2.15
Projection Distance 3.9 to 39.4 ft. / 1.2 to 12m
Projector Angle 12.7° tele / 14° wide
Lens
Zoom 1 to 1.1
Focus Manual
F number, fnumber F=2.41 to 2.55, f=21.83 to 24mm

Keystone Correction +/- 40°

Signal Compatibility/Connectivity

Synchronization Range
Horizontal (Analog/Digital) 15-100 kHz
Vertical (Analog/Digital) 50-120 Hz

Supported Video Standards NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480p, 576i, 576p, 720p, 1080i
PC Signal Compatibility SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
Macintosh Compatibility Yes
Input/Output Terminals
RGB1(analog) VGA 15-pin D-sub, Component video using ADP-CV 1E
RGB2(analog) VGA 15-pin D-sub, Component video using ADP-CV 1E
RGB3(digital) HDMI
Video 1 RCA
Video 2 S-Video
Audio 1 1/8 in. stereo
Audio 2 1/8 in. stereo
Audio 3 L/R RCA (shared by video sources)
Monitor out VGA 15-pin D-sub
Audio out Yes (variable)

Audio 7W speaker
External Control RS-232, IR, Wired LAN
Sync Compatiblity Separate Sync / Composite Sync / Sync on G
Networking RJ-45 Monitoring

Electrical

Power Requirements 100-240V AC, 50/60 Hz
Input Current 2.6A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) 278W / 216W / 4W / 0.5W

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 12.2 x 9.7 x 3.7 in. / 310 x 247 x 95mm
Net Weight 5.5 lbs. / 2.5 kg
Fan Noise 37 dB normal / 33 dB eco
Regulations USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

Environmental

Operating Temperature 41-104°F / 5-40°C
Humidity 20-80% non-condensing
Storage -4-122°F / -20-50°C

Limited Warranty

2 years. Lamp warranty is 1 year or 500 hours, whichever comes first.

Additional Features

Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
3D Ready
BrilliantColor
Built-in wall color correction
Advanced AccuBlend
AutoSense
Kensington lock slot
Image magnification
Discreet source keys

Ships With

Remote control
Batteries
Power cord
RGB signal cable
Lens cap
User manual
Quick Start Guide
Product registration card
