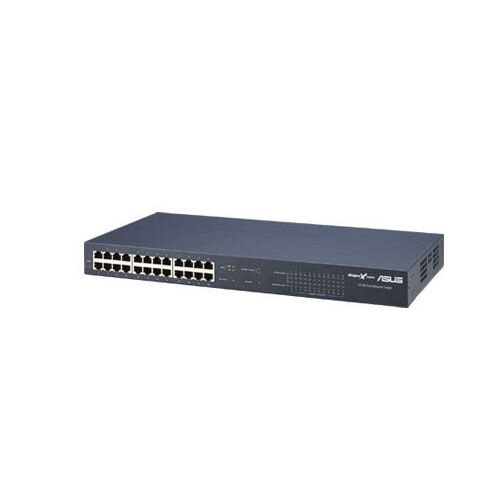

ASUS GigaX 1024

Port Attributes
24 RJ-45 10/100Mbps ports
AC Power
Auto MDI/MDIX
Auto-negotiation: Speed, duplex mode, flow control
Physical Specification
Dimension: 4.4 cm (H) x 44.4 cm (W) x 20 cm (D)
(1.71" x 17.48" x 7.87")
Weight: 2.2Kg
LEDs
Port: Status, Speed, Duplex/Collision
Device: Power
Standard Compliance
IEEE 802.3 (10BASE-T)
IEEE 802.3u (100BASE-TX)
IEEE 802.3x (Flow Control)
Performance
Up to 8000 MAC addresses with automatic address learning and aging
Switch Fabric Capability: * GigaX1024: 4.8Gbps
Packet Forwarding Rate: * GigaX1024: 3.6 Mpps
Features
Store-and-forward.
Full wire-speed switching on all ports.
Back-pressure in half-duplex and flow control in full-duplex operation.
CoS: recognizes 802.1p tagged values.
QoS: 2 transmit queues per port.
Source address learning and aging function.
Power Requirement
Power supply: AC, 90~240VAC, 50/60HZ
Power consumption: 12W Maximum
Environmental Specification
Operating Temperature(0 to 40 C)
Non-operating Temperature (-25 to 70 C)
Humidity (5% to 95%) (Non-condensing)
Vibration (IEC 68-2-36)
Shock (IEC 68-2-29)
Drop (IEC 68-2-32)
Safety
UL1950
TUV
EMC
FCC Part 15 Class A
CE Mark
