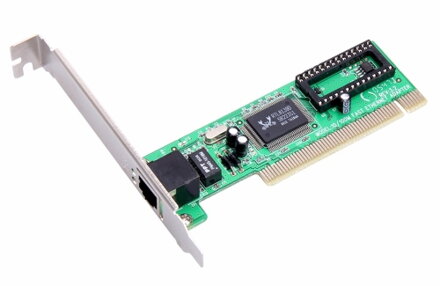

Realtek RTL8139C 10/100Mbps Fast Ethernet PCI Adapter

Realtek RTL8139C 10/100Mbps Fast Ethernet PCI Adapter

Enhanced PCI/Mini-PCI/Cardbus 3.3V Single-Chip 10/100M Fast Ethernet Controller with Power Management

General Description

The Realtek RTL8139C(L) is a highly integrated and cost-effective single-chip Fast Ethernet controller. It is enhanced with an ACPI (Advanced Configuration Power Interface) management function for PCI/Mini-PCI/Cardbus in order to provide efficient power management for advanced operating systems with OSPM (Operating System Directed Power Management). The RTL8139C(L) also provides a remote wake-up function by Magic Packet & Wake-up Frame to increase cost-efficiency in network maintenance and management. Furthermore, it supports the Cardbus interface for PC Card applications and is an ideal solution for notebook/motherboard-embedded network design.

Features

128-pin PQFP/LQFP to reduce design & manufacturing cost
Integrates Fast Ethernet MAC, physical chip and transceiver into a single chip
Supports PCI/Mini-PCI/Cardbus interfaces
10 Mb/s and 100 Mb/s operations
Supports 10 Mb/s and 100 Mb/s N-way auto-negotiation
Supports 25MHz Crystal/25M OSC to reduce BOM cost
Compliant to PCI 2.2 Standard and PC99/PC2001 Standards
Supports ACPI power management
Provides PCI bus master data transfer
Provides PCI memory space or I/O space mapped data transfer
Supports PCI clock 16.75MHz-40MHz
Advanced power saving mode when LAN function or wakeup function is not used
Supports Link Change, Microsoft "Wake-up Frame", and AMD "Magic Packet" for WOL function
Half/Full duplex capability
Supports Full Duplex Flow Control (IEEE 802.3x)
Provides interface to 93C46/93C56 EEPROMs to store resource configuration and ID parameters
Supports up to 128K-byte Flash Memory/Boot-ROM interfaces
Supports PCI Clock Run pin
Supports 3 LEDs to indicate traffic, link, speed and collision
3.3V CMOS process

Applications

PCI NIC cards
Mini-PCI modules
Cardbus PC cards
LOM (LAN on motherboards) and LON (LAN on notebooks) applications
