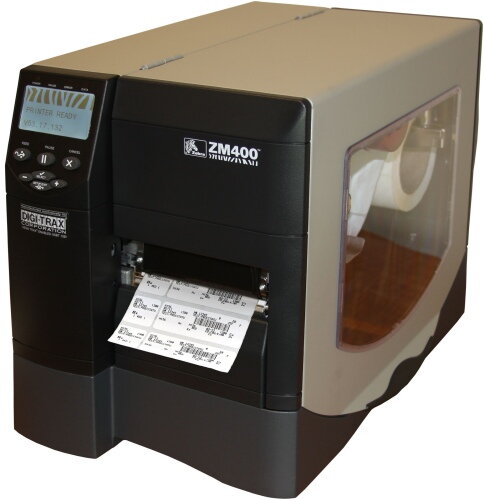

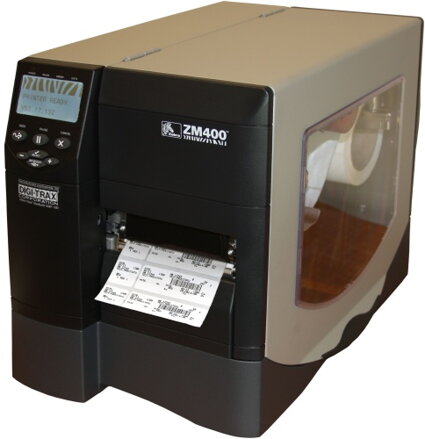

Zebra ZM400

SPECS
GENERAL
Printer TypeLabel printer - direct thermal / thermal transfer - monochrome
Packaged Quantity1
ManufacturerZebra Technologies
PRINTER
Technologydirect thermal / thermal transfer
Print SpeedUp to 600 inch/min - B/W - 203 dpi
Built-in Devicesstatus LCD
Connectivity Technologywired, wireless
InterfaceParallel, USB, serial, Wi-Fi
Language SimulationExtensible Mark-up Language (XML), ZPL, ZPL II
FontsCG Triumvirate Bold Condensed
Featuresrealtime clock
Fonts Included7 x bitmapped
1 x scalable
BarcodesAztec code, CODABLOCK, Codabar, Code 11, Code 128A, Code 128B, Code 128C, Code 2 of 5, Code 39, Code 49, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI-Plessey, MaxiCode, MicroPDF417, PDF417, PLANET, Plessey, Postnet, QR code, UPC-A, UPC-E
Typelabel printer
Max Media Size (Standard)Roll (4.5 in)
Min H-Document Size1 in
Max H-Document Size4.5 m
Max V-Document Size39 in
Max Printing Width4.09 in
Max Printing Length157 in
Media Typecontinuous forms, fanfold paper, labels, perforated labels, tag stock
CONNECTIVITY
Wireless ReadyYes
POWER DEVICE
Typepower supply
Nominal VoltageAC 120/230 V
Form Factorinternal
Power Factor CorrectionYes
CAMERA
Installed Size8 MB
MISCELLANEOUS
Microsoft CertificationsCompatible with Windows 7
NETWORKING
NetworkingPrint server
Network Controller NameZebraNet Wireless Plus
Data Link ProtocolIEEE 802.11b, IEEE 802.11g
Compliant StandardsIEEE 802.11b, IEEE 802.11g
Connectivity Technologywireless
RAM
Technology / Form FactorSDRAM
TechnologySDRAM
FLASH MEMORY
Flash Memory8 MB
ENVIRONMENTAL PARAMETERS
Humidity Range Operating20 - 85%
Min Operating Temperature32 °F
Max Operating Temperature104 °F
PRINTING
Max Resolution B/W203 dpi
MEDIA HANDLING
Min Media Size (Custom)1 in
Max Media Size (Custom)4.5 in x 39 in
Max Printing Width4.09 in
Max Printing Length157 in
Media Thickness Range0.0023 in - 0.01 in
Roll Maximum Outer Diameter8 in
Roll Core Diameter3 in
Media TypeLabels, continuous forms, perforated labels, fanfold paper, tag stock
COPIER
Copier Typenone
DOCUMENT & MEDIA HANDLING
Media Type Classother
Media Size ClassOther
HEADER
BrandZebra
Product LineZebra
ModelZM400
Country KitsUnited States
Packaged Quantity1
CompatibilityPC
OFFICE MACHINE
Typeprinter
Functionsprinter
Printing Technologydirect thermal / thermal transfer
Printing Output Typemonochrome
DIMENSIONS & WEIGHT
Width10.9 in
Depth18.7 in
Height13.3 in
Weight33.07 lbs
INTERFACE REQUIRED
TypeRS-232, USB 2.0, parallel
Total Qty1
EXPANSION BAYS
Typenone
DIMENSIONS & WEIGHT (SHIPPING)
Weight (Shipping)48.5 lbs
PHYSICAL CHARACTERISTICS
Weight33.07 lbs
LABEL PRINTER
Roll Maximum Outer Diameter8 in
Roll Core Diameter3 in
FontsCG Triumvirate Bold Condensed
Featuresrealtime clock
OPERATING SYSTEM / SOFTWARE
TypeDrivers & Utilities
PRINTER OUTPUT
Max Speed600 inch/min
Resolution203 dpi
Output QualityB/W
PRINTER MEDIA
Media Load Typemanual
Media Feeder Qty1
Media Feeder Max FormatRoll (4.5 in)
Media Feeder Capacity1 rolls
PRINTER FONTS
Font Included Typebitmapped, scalable
Fonts Included Qty1, 7
PC CONNECTIVITY
InterfaceUSB, Wi-Fi, parallel, serial
BARCODE
BarcodesAztec code, CODABLOCK, Codabar, Code 11, Code 128A, Code 128B, Code 128C, Code 2 of 5, Code 39, Code 49, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI-Plessey, MaxiCode, MicroPDF417, PDF417, PLANET, Plessey, Postnet, QR code, UPC-A, UPC-EGENERAL
ManufacturerZebra Technologies
