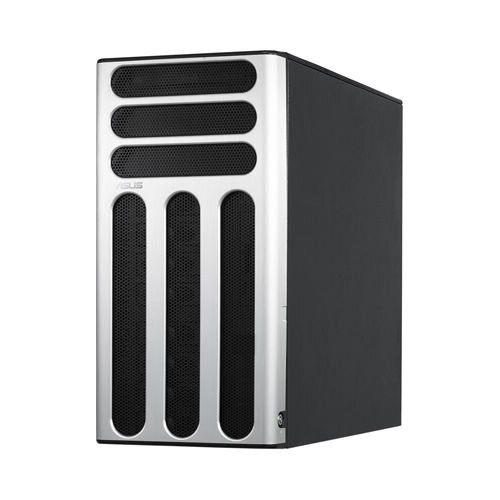

ASUS TS300-E5/PA4
Processors supported/ System Bus
1 x Socket LGA775
Quad-Core Intel® Xeon® processor 3300 series (45nm)
Dual-Core Intel® Xeon® processor 3100 series (45nm)
Quad-Core Intel® Xeon® 3200 series (G0 stepping)
Dual-Core Intel® Xeon® 3000 series
FSB 800/1066/1333MHz EM64T
Core Logic
Intel® 3210 Memory Controller Hub (MCH)
Intel® ICH7R
Memory
Total Slots: 4 (Dual-Channel)
Capacity: Maximum up to 8GB
Memory Type: DDR2 667/800 Unbuffered, ECC
Memory Size: 512MB 1GB 2GB
Expansion Slots
Total Slots: 6
Slot Type: 2 * PCI-E x16 slot (x 8 link)
1 * PCI-E x8 (x1 link)
3 * PCI 32-bit/33MHz slot (5V)
Addditional Slot 1: 1* SO-DIMM socket for optional management card
Storage
SATA Controller: Intel® ICH7R:
4 SATA2 300MB/s ports
Intel Matrix Storage (for Windows only)
(Support software RAID 0, 1, 10 & 5)
LSI MegaRAID (for Linux/Windows)
(Support software RAID 0, 1& 10)
HDD Bays
4 x Hot-swap SATA2 HDD Bays
Networking
LAN: 4 * Broadcom® BCM5721 PCI-E GbE LAN
Graphic
VGA: XGI Z9S VGA Controller / 32MB DDRII SDRAM
Auxiliary Storage
3 x 5.25" media bays
(Options: No ODD/DVD-ROM/DVD-RW )
On Board I/O
1 x External Serial Port
4 x RJ-45 ports
4 x USB2.0 ports Front * 2, Rear * 2
1 x VGA port
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
OS Support
Windows® Server 2003 R2 Enterprise (32/64 bit)
RedHat® Enterprise Linux AS5.0 (32/64 bit)
SuSE® Linux Enterprise Server 10 (32/64 bit)
(Subject to change without any notice)
Anti-virus Software
Management Solution
Software: ASWM2.0
Safety
US/Canada (UL1950-CSA950)
Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
Europe (TUV)
EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
China (CCC)
Dimensions without Packing
412 mm (H) x 220 mm (W) x 510 mm (D)
Net Weight Kg (CPU, DRAM and HDD not included)
18 Kg
Power Supply
470W Single Power Supply
Environment
Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)
