Kingston KHX8500D2T1K2/4G

DESCRIPTION

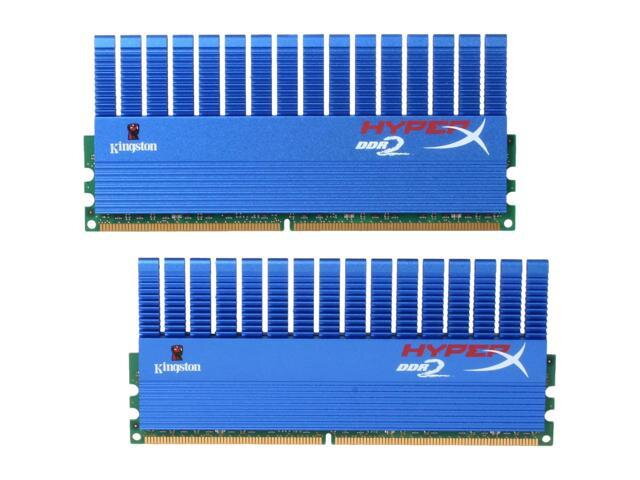

Kingston's KHX8500D2T1K2/4G is a kit of two 256M x 64-
bit 2GB (2048MB) DDR2-1066 CL5 SDRAM (Synchronous
DRAM) memory modules, based on sixteen 128M x 8-bit
DDR2 FBGA components per module. Total kit capacity is
4GB (4096MB). Each module pair has been tested to run
at DDR2-1066MHz at a latency timing of 5-5-5-15 at 2.2V -
2.3V. The SPD is programmed to JEDEC standard latency
800Mhz timing of 5-5-5-18 at 1.8V. Each 240-pin DIMM uses
gold contact fingers and requires +1.8V.

FEATURES
• Power supply : Vdd: 1.8V ± 0.1V, Vddq: 1.8V ± 0.1V
• Double-data-rate architecture; two data transfers per
clock cycle
• Bidirectional data strobe(DQS)
• Differential clock inputs(CK and CK)
• DLL aligns DQ and DQS transition with CK transition
• Programmable Read latency 5 (clock)
• Burst Length: 4, 8 (Interleave/nibble sequential)
• Programmable Burst type (sequential & interleave)
• Timing Reference: 5-5-5-18 at +1.8V / 5-5-5-15 at +2.2V - 2.3V
• Edge aligned data output, center aligned data input
• Auto & Self refresh, 7.8us refresh interval (8K/64ms refresh)
• Serial presence detect with EEPROM
• High Performance Heat Spreader
• PCB : Height 1.180" (30.00mm), double sided component
