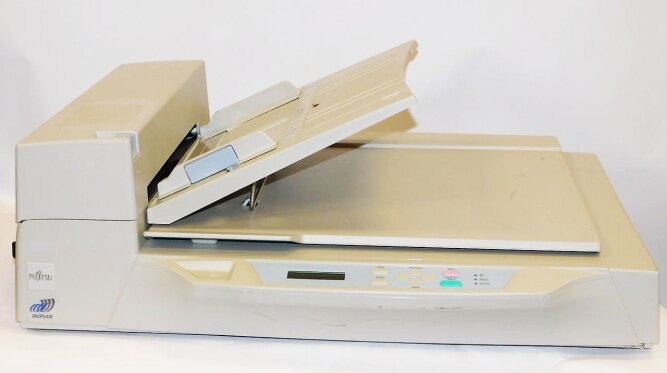

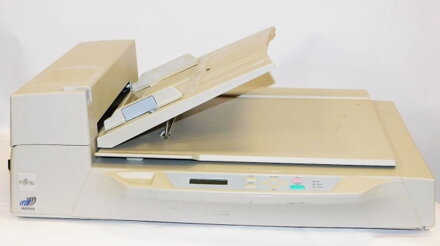

Fujitsu M4097D, SCSI Industrial Scanner

Features

A3 Duplex Scanner
Binary Scanning Speed: 50ppm / 90ipm
Black / White Switchable Background (ADF front side)
High quality image by the imageprocessing function
Double Feeding Detection
SCSI-2 Interface
Inprinter Option

Win 95 Win 98 Win 2000 NT 4.0 Win Me Win XP A3Duplex MonochromeMonochrome 90 ipm
Technical Specifications Accessories, Option, Consumables, Cleaning Tool
Reliable Technical

TWAIN
ISIS
ENERGYSTAR® compliance

Technical Specifications
Parameter Specification
Scanner Type ADF (Automatic Document Feeder) and FB (Flatbed)
Image Sensor Type CCD (Charge-Coupled Device)
Light Source Inert gas (Xenon) fluorescent lamp
Optical Resolution 400dpi
Output Resolution Grayscale 50 to 400 dpi (Simplex)
50 to 200 dpi (Duplex)
Binary 50 to 800 dpi (Addressable by 1 dpi)
AD Converter 1024 levels (10 bit)
Gray Scale Level Grayscale 8 bit / pixel
Binary 1 bit / pixel
Scanning speed A4 portrait
(ADF) Binary (200dpi) Simplex : 50 ppm
Duplex : 90 ipm
A4 landscape
(ADF) Binary (200dpi) Simplex : 67 ppm
Duplex : 114 ipm
A4 portrait
(Flatbed) Binary (200dpi) 0.9sec
Document Size Minimum A8 (portrait, 127g/m2 (34 lb))
Maximum A3 or Width : 11inch, Length : 17inch (ADF, Flatbed)
Document Weight (Tickness) 52 to 127g/m2 (13.9 to 34 lb), In case of A8 size : 127 g/m2 only
Capacity Maximum 100 sheets (64g/m2, 17 lb), paper can be added
Interface SCSI-2 (Half-pitch 50pin)
Option Board Slot (Third party slot)
Connecter shape Shield type 50 pin (pin type) half pitch
Halftone patterns Dither / Error diffusion
Voltage or Voltage Range AC 100 to 240 VAC +10% /-10%
Power 160VA or less
Operation environment Temperature 5 to 35 Degrees Centigrade (42 to 95 Degrees Fahrenheight)
Relative humidity 20 to 80% (Non-condensing)
Dimensions Width 696mm
Depth 521mm
Height 234mm
Weight 22kg (48.4 lb)
Others Multi feed detection Yes
Long paper scanning Yes
Paper counter Yes

[Note]
1. Use the following SCSI card to connect to PC.
Recommended SCSI card
maker SCSI card cable
FUJITSU FMV-126A FMV-CBL832(1m)
FMV-127
FMV-128
FMV-129
Adaptec SCSI Card 2910C ACK-H2H-1M(1m)
ACK-H2H-2M(2m)
SCSI Card 2915LP
SCSI Card 2930LP
SCSI Card 2940AU

Use of other SCSI card may cause unstable scan operations.
If you use ADAPTEC SCSI card,please install the correct drivers and the updates.
