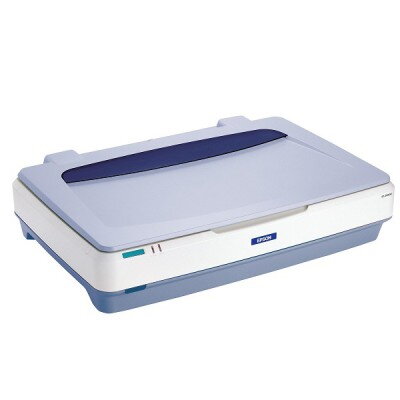

EPSON GT-15000, veľkoformátový skener SCSI, USB

Scanner Specifications
General
Scanner type
Flatbed, color
Photoelectric
device
Color CCD line sensor
Effective pixels
7020 × 10200 pixels (at 600 dpi)
Color depth
48-bit internal/24-bit external
Grayscale depth
16-bit internal/8-bit external
Maximum
document size
11.7 × 17.0 inches (297 × 432 mm);
the reading area can be specified from your
software
Resolution
600 dpi (optical)
Maximum hard-
ware resolution*
600 dpi (main scan); 1200 dpi with Micro
Step Drive (sub scan)
* The maximum hardware resolution of
600 × 1200 dpi is achieved using
EPSON's Micro Step Drive technology
Output resolution 50 to 9600 dpi
Maximum inter-
polated resolution 4800 dpi
Speed (600 dpi,
draft mode)
Color: 3.8 msec/line (approx.)
Grayscale: 1.3 msec/line (approx.)
Line Art: 1.3 msec/line (approx.)
Color separation
RGB color filters on CCD
Reading sequence Monochrome: One-pass scanning
Color byte sequence: One-pass scanning
(R, G, B)
Color line sequence: One-pass scanning
(R, G, B)
Zoom
50 to 200% in 1% increments
Command level
ESC/I-B7
FS
Pixel depth
16 bits per pixel input, 1 to 8 bits per pixel
output
Brightness
7 levels
Line art settings
Fixed threshold
TET (Text Enhancement Technology,
enable/disable selectable)

Digital halftoning AAS (Auto Area Segmentation,
enable/disable selectable)
3 error diffusion modes (A, B, and C)
4 dither patterns (A, B, C, and D) for
bi-level and quad-level data
(2 downloadable dither patterns)
Gamma
correction
2 types for CRT display
3 types for printer
1 type user-defined
Color correction
1 type for CRT display
3 types for printer (available in color
byte sequence mode and color line sequence
mode)
1 type user-defined
Interfaces
SCSI 2 (half pitch 50-pin connectors)
USB 2.0 (Type B receptacle connector)
IEEE 1394 (FireWire), optional
10Base-T/100Base-TX, optional
Light source
Xenon gas cold cathode fluorescent lamp
Reliability
100,000 cycles of carriage movement
(main unit MCBF)
Dimensions
Width: 25.8 inches (656 mm)
Depth: 18.0 inches (458 mm)
Height: 6.2 inches (158 mm)
Weight
Approximately 29.8 lb (13.5 kg)
Electrical
Input voltage
range
+
10%)
100 to 120 VAC
220 to 240 VAC
Rated frequency
50 to 60 Hz
Rated current
100 to 120 VAC: 0.8 A
220 to 240 VAC: 0.3 A
Power
consumption
Operating: approximately 50 W
(75 W with ADF unit)
Standby: approximately 7.5 W

Environmental
Temperature
Operating: 41 to 95 °F (5 to 35 °C)
Storage: –13 to 140 °F (–25 to 60 °C)
Humidity (without condensation)
Operating: 10 to 80%
Storage: 10 to 85%
Operating
conditions
Ordinary office or home conditions. Avoid
dust, direct sunlight, and proximity to
strong light sources.
Safety Approvals
120 V model
Safety:
UL 1950
CSA C22.2 No. 950
EN 60950
EMC:
FCC part 15 subpart B class B
CSA C108.8 class B
EN 55022 (CISPR Pub 22) class B
AS/NZS 3548 class B
CNS 13438 class B
230 V model
Safety:
EN 60950
EMC:
EN 55022 class B,
EN 55024, EN 61000-3-2, 3-3
SCSI Interface
Interface type
ANSI X3T9.2/375R Revision 10L (SCSI 2)
Logic level
TTL-compatible
ID setting
Selectable from 0 to 7
Terminator
Internal terminator (enable/disable
selectable)
Connector type
Two half pitch 50-pin connectors
USB Interface
Interface type
Universal Serial Bus Specification, Rev. 2.0
Electrical standard Full speed mode (12Mb) and High speed
mode (480 Mbps) of Universal Serial Bus
Specification
Revision 2.0
Connector type
One receptacle (Type B)
