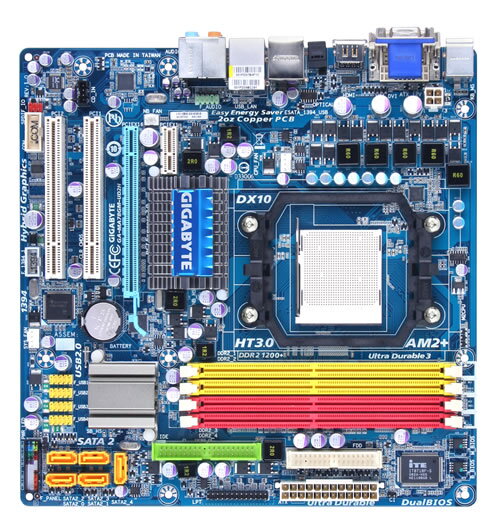

Gigabyte GA-MA78GM-UD2H mainboard

CPU

Support for Socket AM3 / AM2+ / AM2 processors: AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 processor/ AMD Sempron™ processor

Hyper Transport Bus

5200/2000 MT/s

Chipset

North Bridge: AMD 780G
South Bridge: AMD SB700

Memory

4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 1200 (Note 2)/1066/800/667 MHz memory modules

Audio

Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Supports for Dolby Home Theater (Note 3)
Support for S/PDIF In/Out
Support for CD In

LAN

Realtek 8111C chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x1 slot
2 x PCI slots

Storage Interface
South Bridge:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
Support for SATA RAID 0, RAID 1, RAID 10 and JBOD

iTE IT8718 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB
Integrated in the South Bridge

Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)

IEEE 1394
T.I. TSB43AB23 chip

Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
5 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
1 x IEEE 1394a header
4 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x chassis intrusion header
1 x power LED header

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 4)(Note 5)
1 x HDMI port(Note 5)
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

ITE IT8718 chip

H/W Monitoring
System voltage detection

CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 6)

BIOS

2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Virtual Dual BIOS
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 7)
Support for Easy Energy Saver (Note 8)
Support for Time Repare
Support for Q-Share

Operating System

Support for Microsoft Windows Vista/ XP

Form Factor

Micro ATX Form Factor; 24.3cm x 24.3cm

Note
(Note 1) Due to Windows XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether 1200 MHz memory speed is supported depends on the CPU being used.
(Note 3) For Windows Vista/XP 32-bit opearation system only.
(Note 4) The DVI-D port does not support D-Sub connection by adapter.
(Note 5) Simultaneous output for DVI-D and HDMI is not supported.
(Note 6) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 7) Available functions in Easytune may differ by motherboard model.
(Note 8) Due to the hardware limitation, you must install an AMD AM2+ Phenom series CPU to enable support for Easy Energy Saver.
Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
