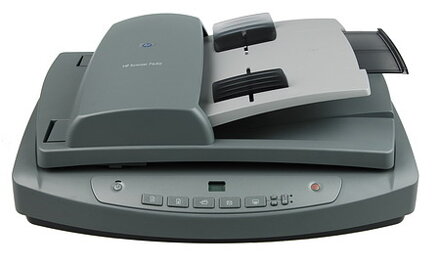

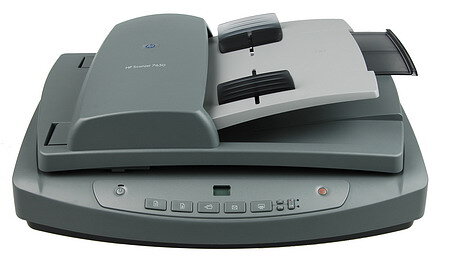

HP ScanJet 7650

V ponuke dva kusy:
1. vrátane TMA
2. bez TMA

Scanner specifications
The following specifications refer to the scanner only and not the TMA or ADF.
Name

Description
Scanner type

Flatbed with ADF and TMA
Weight (with ADF)

5.7 kg (12.6 pounds)
Size with ADF

488 x 340 x 162 mm (19.21 x 13.39 x 6.38 inches)
Scanning element

Charged-coupled device
Interface

USB 2.0 Hi-Speed
Optical resolution

2400 x 2400 dpi hardware
Selectable resolution

12 dpi to 999,999 enhanced dpi at 100 percent scaling
AC line voltage

100-120 V 60 Hz - North America
200-240 V 50 Hz - Continental Europe, United Kingdom, Australia
100-240 V 50 Hz/60 Hz - Rest of the world

Power consumption

For power consumption data, see the regulatory_supplement.htm file on the HP Image Zone software CD.
Energy Star

The HP Scanjet 7600 series scanner is Energy Star compliant. As an Energy Star partner, Hewlett-Packard Company has determined that this product meets the Energy Star guidelines for energy efficiency.
Transparent Materials Adapter (TMA) specifications
The following specifications refer to the Transparent Materials Adapter (TMA) and not the scanner or ADF.
Name

Description
Media types

Three 35 mm slides or one 35 mm negative strip
Media capacity

Slides: 1.05 mm to 1.9 mm thick and 49.8 mm to 50.8 mm on any side
Size

287 x 84 x 50 mm (11.3 x 3.3 x 1.97 inches)
Weight

346 g (0.763 pounds)
Power requirements

1.0 Amps, 24 Volts, 24 watts < (supplied by scanner)
925 mA, 22 watts (peak) 700 mA, 17 watts (nominal)
Automatic Document Feeder (ADF) specifications
The following specifications refer to the Automatic Document Feeder (ADF) and not the scanner or TMA.
Name

Description
Size

475 x 320 x 92 mm (18.7 x 12.6 x 3.6 inches)
Weight

2.46 kg (5.4 pounds)
Paper tray capacity

50 pieces of 75 g/m2 (20-pound bond)
Maximum paper size

One sided scanning: 210 x 355.6 mm (8.5 x 14 inches)
Two sided scanning: 210 x 304.8 mm (8.5 x 12 inches)
Minimum paper size

One sided scanning: 89 x 127 mm (3.5 x 5 inches)
Two sided scanning: 127 x 127 mm (5 x 5 inches)
Maximum paper weight

90 g/m2 (24 pounds)
Power requirements

1.0 A, 24 V, 32 watts (supplied by scanner)
800 mA, 19 watts (peak) 625 mA, 15 watts (nominal)
Environmental specifications
Name

Description
Temperature

Operating the scanner and TMA: 10 to 35 degrees C (50 to 95 degrees F)
Operating the ADF: 10 to 30 degrees C (50 to 85 degrees F)
Storage: -40 to 60 degrees C (-40 to 140 degrees F)
Relative humidity

Operating: 15 percent to 80 percent non-condensing 10 to 35 degrees C (50 to 95 degrees F)
Storage: up to 90 percent at 0 to 65 degrees C (32 to 149 degrees F)
