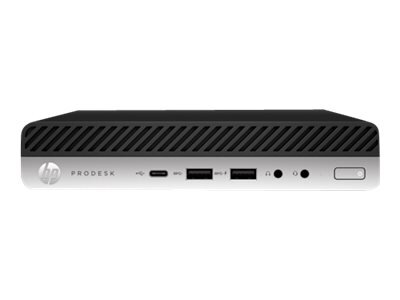

HP ProDesk 600 G3 Mini, Core i5-7500T, 8GB RAM, 256GB SSD

Specifications

Cache Memory
Installed Size 6 MB
Cache Per Processor 6 MB
Miscellaneous
Cables Included DisplayPort cable
Theft/Intrusion Protection Security lock slot (cable lock sold separately), padlock loop
Mounting Interface 100 x 100 mm
Compliant Standards ACPI, CCC, CECP, SEPA
Networking
Ethernet Controller Intel I219LM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Dimensions & Weight
Width 7 in
Depth 6.9 in
Height 1.3 in
Weight 2.67 lbs
Keyboard
Keyboard Name HP Business Slim Keyboard
Interface USB
Localization & Layout US
Audio Output
Sound Output Mode Stereo
Max Sampling Rate 192 kHz
Compliant Standards High Definition Audio
Hard Drive
Type SSD - 2.5"
Capacity 1 x 256 GB
Interface Type SATA 6Gb/s
Features Triple-level cell (TLC), HP Value
Graphics Controller
Graphics Processor Intel HD Graphics 630
Video Interfaces DisplayPort
HDCP compatible Yes
Max Monitors Supported 3
Monitor
Monitor Type None.
Mouse
Technology Optical
Interface USB
Storage Controller
Type 1 x SATA
Controller Interface Type SATA 6Gb/s
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 - 90% (non-condensing)
Input Device
Type Mouse, keyboard
General
Type Personal computer
Product Form Factor Mini desktop
Built-in Devices Speaker
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Localization English / United States
Processor / Chipset
CPU Intel Core i5 (7th Gen) 7500T / 2.7 GHz
Max Turbo Speed 3.3 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Upgradable
Processor Main Features Intel Turbo Boost Technology 2, Intel Smart Cache
CPU Socket LGA1151 Socket
Chipset Type Intel Q270
Expansion / Connectivity
Bays 1 (total) / 0 (free) x internal 2.5"
Slots 1 (total) / 0 (free) x CPU ¦ 2 (total) / 0 (free) x SO-DIMM 260-pin ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (x1 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 2280 (x4 mode)
Interfaces 6 x USB 3.1 Gen 1 (2 front, 4 rear) (two of them with wake functionality, one of them is fast-charging) ¦ 1 x USB 3.1 Gen 1 - Type C (1 in front) (charging) ¦ 2 x DisplayPort ¦ 1 x headphones/microphone (1 in front) ¦ 1 x headphones (1 in front) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x antenna ¦ 1 x VGA
Power
Device Type Power adapter
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Provided 65 Watt
Efficiency 89% (115VAC), 89% (230VAC)
Operating System / Software
OS Provided Windows 10 Pro 64-bit Edition
RAM
Installed Size 8 GB / 32 GB (max)
Technology DDR4 SDRAM - non-ECC
Effective Memory Speed 2400 MHz
Rated Memory Speed 2400 MHz
Memory Specification Compliance PC4-19200
Form Factor SO-DIMM 260-pin
Features Unbuffered
Configuration Features 2 x 4 GB
