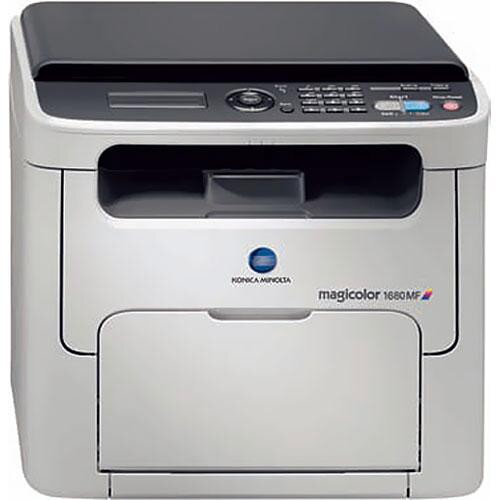

Konica Minolta Magicolor 1680MF (trieda B)

Specifications
Print process
Print method Desktop full colour, A4 laser beam
Print Speed A4: Colour: 5 ppm
Mono: 20 ppm
First page out First Print:
Colour: 23 sec.
Mono: 14 sec.
First Copy:
Colour: 52 sec.
Mono: 23 sec.
Warm-up time Average 30 sec.
Max. resolution 1,200 dpi x 600 dpi x 1 bit
Print volume Recommended: 550 pages per month (average)
Print functions Autozoom, N-up, poster mode, booklet, watermark, quality adjustment, overlay, collating
Copy process
Copy Speed Up to 20 ppm monochrome
Up to 5 ppm colour
First copy out 23 seconds monochrome
52 seconds colour
Copy resolution 600 dpi x 600 dpi x 1 bit
Copies 1 - 99
Zoom range 50 - 200 % (by 1 % step)
Copy functions ID card copy
Scan process
Scan technology CCD Image sensor, flat bed
Scan speed Colour: 1.42 ms/line monochrome
Monochrome: 4.26 ms/line colour
Resolution 600 x 600 dpi
Scan size Max. A4, custom formats
Scan Modes TWAIN scan
Windows WIA scan
File Formats PDF, TIFF, JPEG
Hardware and software capabilities
Memory 64 MB
Interface support USB 2.0, 10-Base/100-Base-TX Ethernet (optional)
Operating system compatibility
Operating systems Windows: 2000, Server 2000, Server 2003 (32/64), Server 2008 (32/64), Windows Vista (32/64), Windows XP (32/64), Windows 7 (32/64)Macintosh: OSX (10.2, 10.3, 10.4, 10.5, 10.6)
Paper handling
Paper input Standard: 200 sheets multi manual feed tray
Paper output Standard: 100-sheet face down output tray
Media sizes supported A4, A5, B5, letter, legal, envelope C6, envelope DL, custom size (92 - 216 mm x 184 - 356 mm)
Duplexer sizes supported A4
Printable area Approx. 4 mm from all edges
Paper weights Plain paper (60 - 90 g/m²), recycled paper (60 - 90 g/m²), thick paper 1 (91 - 163 g/m²), thick paper 2 (164 - 209 g/m²)
Print media Plain paper, recycled paper, envelope, labels, postcard, thick paper, letterhead
Physical
Dimensions (W x D x H in mm) 405 x 427 x 375 mm
Weight 19.2 kg
Electrical
Input voltage range 220/240 VAC ±10%
Frequency 50/60 Hz ( ±3 %)
Average during printing < 410 W (colour)
< 560 W (monochrome)
Standby < 170 W
Energy Save < 14 W
Environmental
Temperature Operating: 10 to 35°C
Humidity Operating: 15 to 85% RH
Noise Level Printing: < 52dB(A)
Standby: < 35dB(A)
Regulatory/Safety conformity Doc, CE Marking, GS, EMC, WEEE, Energy Star (magicolor 1690MF)
Consumables
Imaging Unit (waste toner bottle included): Black yield up to 45,000 pages Cyan, magenta and yellow yield up to 11,250 pages
Replacements, Standard Cyan, magenta and yellow toner yield up to 1,500 pages
Imaging unit (waste toner bottle included): Black yield up to 45,000 pages Cyan, magenta and yellow yield up to 11,250 pages
Replacements, High Capacity Cyan, magenta, yellow and black toner yield up to 2,500 pages
Maintenance parts
Fuser unit: Yield up to 50,000 sheets
2nd transfer unit Yield up to 50,000 sheets
