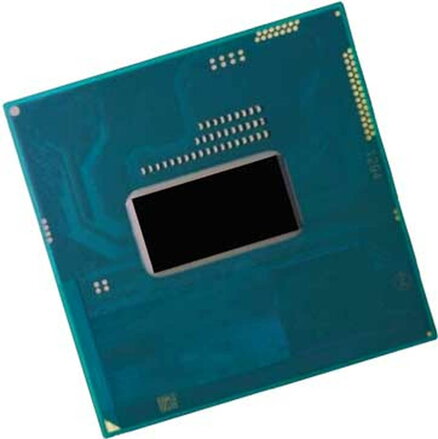

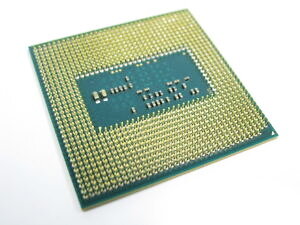

Intel® Core™ i5-4200M

Essentials

Product Collection 4th Generation Intel® Core™ i5 Processors
Code Name Products formerly Haswell
Vertical Segment Mobile
Processor Number i5-4200M
Status Launched
Launch Date Q4'13
Lithography 22 nm
Recommended Customer Price $225.00

Performance

# of Cores 2
# of Threads 4
Processor Base Frequency 2.50 GHz
Max Turbo Frequency 3.10 GHz
Cache 3 MB SmartCache
Bus Speed 5 GT/s DMI2
TDP 37 W

Supplemental Information

Embedded Options Available No

Memory Specifications

Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3L 1333/1600
Max # of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
ECC Memory Supported ‡ No

Processor Graphics

Processor Graphics ‡ Intel® HD Graphics 4600
Graphics Base Frequency 400 MHz
Graphics Max Dynamic Frequency 1.15 GHz
Graphics Video Max Memory 2 GB
Graphics Output eDP/DP/HDMI
Max Resolution (HDMI 1.4)‡ 3840x2160@60Hz
Max Resolution (DP)‡ 3840x2160@60Hz
Max Resolution (VGA)‡ 2880x1800@60Hz
DirectX* Support 11.2/12
OpenGL* Support 4.3
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 3
Device ID 0x416

Expansion Options

PCI Express Revision 3
PCI Express Configurations ‡ 1x16 or 2x8 or 1x8 2x4
Max # of PCI Express Lanes 16

Package Specifications

Sockets Supported FCPGA946
Max CPU Configuration 1
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm x 4.7mm
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® Turbo Boost Technology ‡ 2.0
Intel® vPro™ Technology ‡ No
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ No
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes

Security & Reliability

Intel® AES New Instructions Yes
Secure Key Yes
Intel® Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
Anti-Theft Technology Yes
