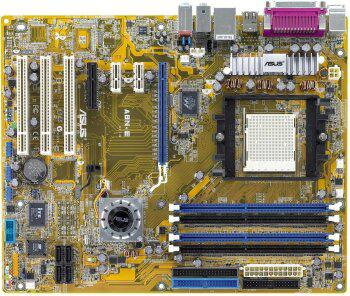

ASUS A8N-E Rev 2.00 mainboard

General

Chipset Type
NVIDIA nForce4 Ultra
Compatible Processors
Athlon 64, Athlon 64 FX, Athlon 64 X2
Processor Socket
Socket 939
Max Bus Speed
1000 MHz
Max Processors Qty
1
Manufacturer
Asus

Expansion / Connectivity

Expansion Slots
1 x CPU
4 x DIMM 184-pin
1 x PCIe x16
1 x PCIe x4
2 x PCIe x1
3 x PCI
Storage Interfaces
SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 0+1 / JBOD
ATA-133 -connectors: 2 x 40pin IDC - 4 devices - RAID 0 / RAID 1 / RAID 0+1 / JBOD
Internal Interfaces
1 x floppy
1 x audio - 4 pin MPC
Additional Connectors (Optional)
2 x USB 2.0
Power Connectors
4-pin ATX12V connector, 24-pin main power connector

Processor

Max Supported Qty
1
Installed Qty
0

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network
Gigabit Ethernet

Interface Provided

Qty
1, 8
Type
LAN (Gigabit Ethernet), PS/2 keyboard, audio line-out (side surround), microphone, parallel, PS/2 mouse, SPDIF out, TOSLINK, USB 2.0, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear)
Connector Type
mini-jack

Miscellaneous

Product Type
motherboard

Audio

Audio Codec
Realtek ALC850

Cache Memory

Type
none

Processor / Memory / Storage

Max Supported Qty
1

Video

Video Output
none

RAM

Max Supported Size
4 GB
Features
dual channel memory architecture

Audio Output

Sound Output Mode
7.1 channel surround
Type
sound card
Audio Codec
Realtek ALC850
Audio
8-channel

LAN

Network Interfaces
Gigabit Ethernet

Supported RAM

Bus Clock
400 MHz, 333 MHz, 266 MHz
Features
Dual channel memory architecture
Registered or Buffered
Unbuffered
Speed
PC3200, PC2700, PC2100
Max Size
4 GB
Technology
DDR
Supported RAM Integrity Check
Non-ECC, ECC

Header

Brand
ASUS
Product Line
ASUS
Model
A8N-E
Packaged Quantity
1
Compatibility
PC

Mainboard

Form Factor
ATX
Processor Socket
Socket 939
Compatible Processors
Athlon 64, Athlon 64 FX, Athlon 64 X2
Data Bus Speed
1000 MHz
Chipset Type
NVIDIA nForce4 Ultra
Supported RAM Technology
DDR SDRAM
Supported RAM Speed
266 MHz, 333 MHz, 400 MHz
Supported RAM Standard
PC2100, PC2700, PC3200
Supported RAM Integrity Check
ECC, non-ECC
Supported RAM (Registered or Buffered)
unbuffered
Power Connectors
24-pin main power connector, 4-pin ATX12V connector

Mainboard Features

BIOS Features
ASUS EZ Flash, ASUS MyLogo2, Multilingual BIOS, RAID support
Manual Settings
CPU frequency, FSB ratio (CPU:PCI), FSB ratio (CPU:memory), PCI Express x16 slot frequency, memory bus frequency, memory voltage, processor core voltage
Hardware Features
AMD Cool 'n' Quiet Technology, ASUS AI NOS (Non-delay Overclocking System), ASUS Instant Music Lite, ASUS Q-Fan, CrashFree BIOS 2, NVIDIA Firewall, chassis intrusion detection

Interfaces

Storage
ATA-133 (RAID), Serial ATA-300 (RAID)

Expansion Slots

Total Qty
1, 2, 3, 4
Type
CPU, DIMM 184-pin, PCI, PCIe x1, PCIe x16, PCIe x4

Dimensions & Weight

Width
12 in
Depth
9.6 in

Storage Interfaces

Interface
ATA-133, Serial ATA-300
Connector(s)
2 x 40pin IDC, 4 x 7pin Serial ATA
Supported Devices Qty
4
RAID (Level)
RAID 0 / RAID 1 / RAID 0+1 / JBOD

Service & Support

Type
3 years warranty

Service & Support Details

Type
limited warranty
Full Contract Period
3 years

Internal Interfaces

Type
audio, floppy
Connector Type
4 pin MPC
Qty
1

Features

Manual Settings
CPU frequency, processor core voltage, memory voltage, memory bus frequency, FSB ratio (CPU:PCI), FSB ratio (CPU:memory), PCI Express x16 slot frequency
Hardware Features
ASUS Instant Music Lite, chassis intrusion detection, ASUS Q-Fan, CrashFree BIOS 2, AMD Cool 'n' Quiet Technology, NVIDIA Firewall, ASUS AI NOS (Non-delay Overclocking System)
BIOS Features
Multilingual BIOS, ASUS MyLogo2, ASUS EZ Flash, RAID support

General

Manufacturer
Asus
