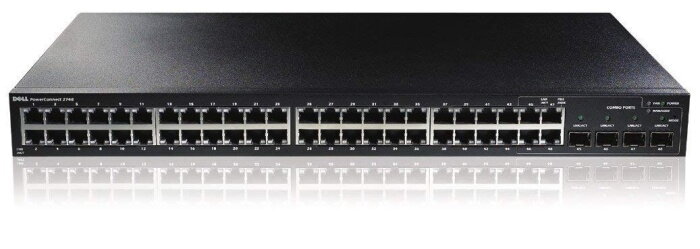

DELL PowerConnect 2848

General

Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 + 4 x combo SFP
Performance
Switching capacity: 96 Gbps
Forwarding performance: 71.4 Mpps
Jumbo Frame Support
9000 bytes
MAC Address Table Size
8K entries
Status Indicators
Port transmission speed, power, link/activity, fan
Routing Protocol
IGMP
Jumbo Frame Support
9000 bytes
Manufacturer
Dell, Inc.

Networking

MAC Address Table Size
8K entries
Subcategory
network hubs and switches
Subtype
Gigabit Ethernet
Form Factor
desktop, rack-mountable
Type
Switch
Features
2MB packet buffer, 802.1x authentication, IGMP snooping, IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, STP Root Guard, Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), ARP support, Syslog support, TCP/IP offloading, UDP/IP offloading, VLAN support, Virtual Cable Test (VCT) technology, Weighted Round Robin (WRR) queuing, auto-negotiation, auto-uplink (auto MDI/MDI-X), flow control, full duplex mode, BOOTP support, manageable, port mirroring, tagged VLAN, Broadcast Storm Control, Class of Service (CoS), DHCP client, DHCP server, DHCP support, Generic Attribute Registration Protocol (GARP)
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3x
Jumbo Frame Support
9000 bytes
Ports Qty
48
Manageable
Yes
Routing Protocol
IGMP
Remote Management Protocol
CLI, HTTP, RMON, SNMP, TFTP, Telnet

Power Device

Nominal Voltage
AC 220 V
Type
internal power supply

Miscellaneous

Compliant Standards
FCC Class A certified, TUV, GOST, GS, NEMKO, NOM, SABS, CCC, IRAM, RoHS, Lead-Free, SII, WEEE, C-Tick Class A, REACH, ICES Class A, KCC Class A, Kvalitet, SONCAP, KEBS, NRTL, SCC, KONCAR, IECEE CB, INSM
Rack Mounting Kit
included
Height (Rack Units)
1 m

Interface Provided

Interface
Ethernet 1000
Qty
1, 4, 48
Connector Type
SFP (mini-GBIC)
Comments
management

Chassis

Built-in Devices
LED panel

Environmental Parameters

Humidity Range Storage
10 - 95% (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 - 90% (non-condensing)

Header

Brand
Dell
Product Line
Dell PowerConnect
Model
2848
Packaged Quantity
1
Compatibility
PC

Dimensions & Weight

Width
17.3 in
Depth
8.9 in
Height
1.7 in
Weight
8.16 lbs

Ports

Type
10/100/1000
Qty
48

Expansion Slots

Type
none

Ports (2nd)

Type
combo SFP
Qty
4

Performance

Type
forwarding performance, switching capacity
Value
71.4 Mpps, 96 Gbps

Capacity

Type
QoS hardware queues, VLAN tags per device, virtual interfaces (VLANs) per port for 802.1q
Value
4, 4096, 64

General

Manufacturer
Dell, Inc.
