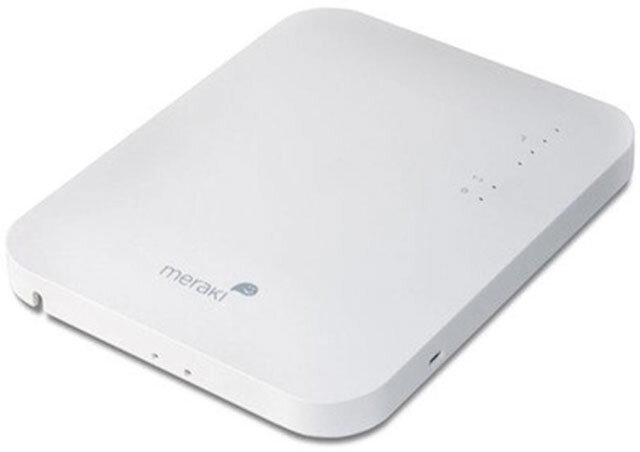

Cisco Meraki MR18 Cloud Managed Access Point

Dual-radio 2x2 MIMO 802.11n access point
with third radio dedicated to RF and security

Dual-band
cloud-managed wireless LAN
The Cisco Meraki MR18 is an industry-first three-radio, cloud
managed 2x2 MIMO 802.11n access point designed for deployments
in offices, schools, hospitals, hotels, and large retail stores. The MR18
features dual-concurrent, dual-band operation and advanced
802.11n technologies such as MIMO and beam forming, delivering
the high throughput and reliable coverage required by demanding
business applications like voice and video. Not only does the MR18
provide speeds of up to 600 Mbps with two concurrent 2x2:2 MIMO
radios, but also delivers unprecedented security and spectrum
visibility via a third radio dedicated to 24x7 WIDS/WIPS
and advanced RF analytics.
MR18 and Meraki Cloud Management: A Powerful Combo
The MR18 is managed via the Meraki cloud, with an intuitive browser-
based interface that lets you get up and running quickly without
training or certifications. Since the MR18 is self-configuring and
managed over the web, it can even be deployed at a remote location
without on-site IT staff.
The MR18 is monitored 24x7 via the cloud, which delivers real-time
alerts if your network encounters problems. Remote diagnostics tools
enable real-time troubleshooting over the web, meaning multi-site,
distributed networks can be managed remotely.
The MR18's firmware is always kept up to date from the cloud. New
features, bug fixes, and enhancements are delivered seamlessly
over the web, meaning no manual software updates to download
or missing security patches to worry about.
Product Highlights
•
Dual-concurrent 802.11n radios
•
Up to 600 Mbps combined data rate
•
24x7 real-time WIPS/WIDS and spectrum analytics
via dedicated third radio
*
•
Enhanced transmit power and receive sensitivity
•
Self-healing, zero-configuration mesh
•
Integrated enterprise security and guest access
•
Application-aware traffic shaping
•
Self-configuring, plug-and-play
deployment
•
Sleek, low profile design blends into office environments
•
Optimized for voice and video
MR18
Dual-radio 2x2 MIMO 802.11n access point
with third radio dedicated to RF and security
Datasheet |
MR18
Features
Dual enterprise class 802.11n radios, up to 600 Mbps
The MR18 features two powerful radios and advanced RF design for
enhanced receive sensitivity. Combined with 802.11n technologies
including 2x2 MIMO and transmit beamforming, the MR18 delivers
data rates of up to 600 Mbps and enhanced coverage, meaning
fewer access points are required for a given deployment. In addition,
the MR18 uses band steering to automatically serve 5 GHz-capable
clients with the 5 GHz radio, maximizing capacity in the 2.4 GHz
range for older 802.11b/g and 2.4 GHz-only clients
Dedicated third radio delivers 24x7 wireless security
and RF analytics
*
The MR18's dedicated dual-band third radio scans the environment
continuously, characterizing RF interference and containing wireless
threats like rogue access points. No more need to choose between
wireless security, advanced RF analysis, and serving client data: a
dedicated third radio means that all three occur in real-time, without
any impact to client traffic or AP throughput.
Application-aware traffic shaping
The MR18 includes an integrated layer 7 packet inspection,
classification, and control engine, enabling QoS policies based on
traffic type. Integrated support for Wireless Multi Media (WMM) and
802.1p DSCP tagging. Prioritize your mission critical applications,
while setting limits on recreational traffic, e.g., peer-to-peer and
video streaming.
Automatic RF optimization with spectrum analysis
The MR18's sophisticated, automated RF optimization means that
there is no need for the dedicated hardware and RF expertise
typically required to tune a wireless network. An integrated spectrum
analyzer monitors the airspace for neighboring WiFi devices as
well as non-802.11 interference – microwave ovens, Bluetooth
headsets, etc. The Meraki cloud then automatically optimizes the
MR18's channel selection, transmit power, and client connection
settings, providing optimal performance even under challenging RF
conditions.
Integrated enterprise security and guest access
The MR18 features integrated, easy-to-use security technologies
to provide secure connectivity for employees and guests alike.
Advanced security features such as AES hardware-based
encryption and WPA2-Enterprise authentication with 802.1X and
Active Directory integration provide wire-like security while still
being easy to configure. One-click guest isolation provides secure,
Internet-only access for visitors. The integrated policy firewall
(Identity Policy Manager) enables granular group or device-based
access control. Meraki Teleworker VPN makes it easy to extend
the corporate LAN to remote sites, without requiring clients and
devices to have client VPN software. PCI compliance reports check
network settings against PCI requirements to simplify secure retail
deployments.
Secure wireless environments 24x7 using Air Marshal
There's no need to choose between a wireless intrusion prevention
system (WIPS) and serving client data: thanks to the dedicated
third radio, Air Marshal, a highly optimized built-in WIPS, scans
continuously for threats and remediates them as commanded,
all without disrupting client service. Alarms and auto-containment
of malicious and rogue APs are configured via flexible remediation
policies, ensuring optimal security and performance in even the most
challenging wireless environments.
High performance mesh
The MR18's advanced mesh technologies like multi-channel
routing protocols and multiple gateway support enable scalable,
high throughput coverage of hard-to-wire areas with zero
configuration. Mesh also improves network reliability – in the event
of a switch or cable failure, the MR18 will automatically revert to
mesh mode, providing continued gateway connectivity to clients.
Self-configuring, self-optimizing, self-healing
When plugged in, the MR18 automatically connects to the Meraki
cloud, downloads its configuration, and joins the appropriate
network. It self optimizes, determining the ideal channel, transmit
power, and client connection parameters. It also self heals,
responding automatically to switch failures and other errors.
Low profile, environmentally friendly design
Despite its incredible power and feature set, the MR18 is the lowest
profile 802.11n access point available – at just one inch thick, it
blends seamlessly into any environment. In addition to looking great,
the MR18 is earth friendly: we've eliminated excess packaging and
documentation, and 90% of the access point materials are recyclable.
A maximum power draw of only 9.8 watts and a cloud-managed
architecture mean that pollution, material utilization and electricity
bills are minimized.
*Available Q2 CY2014 via software update

Radios
One 2.4 GHz 802.11b/g/n radio, one 5 GHz 802.11a/n radio
Dedicated radio for dual-band WIPS & spectrum analysis
Concurrent operations of all three radios
Max data rate 600 Mbit/s
Operating Bands:
FCC (US)
EU (Europe)
2.412-2.484 GHz
2.412-2.484 GHz
5.150-5.250 GHz (UNII-1)
5.150-5.250 GHz (UNII-1)
5.725 -5.825 GHz (UNII-3)
5.250-5.350, 5.470-5.600, 5.650-5.725 GHz (UNII-2)
802.11n Capabilities
2 x 2 multiple input, multiple output (MIMO) with two spatial streams
Maximal ratio combining (MRC)
Beamforming
20 and 40 MHz channels
Packet aggregation
Cyclic shift diversity (CSD) support
Power
Power over Ethernet: 24 - 57 V (802.3af compatible)
12V DC
Power consumption: 9.8 W max
Power over Ethernet injector and DC adapter sold separately
Mounting
All standard mounting hardware included
Desktop and wall mount
Ceiling tile rail (9/16, 15/16 or 1 ½" flush or recessed rails), assorted cable junction boxes
Physical Security
Security screw included
Kensington lock hard point
Anti-tamper cable bay
Concealed mount plate
Environment
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5 to 95% non-condensing
Physical Dimensions
7.25" x 5.69" x 1.17" (186 mm x 146 mm x 30 mm) excluding deskmount feet or mount plate
Weight: 25.7 oz (0.73 kg)
Antenna
Integrated omni-directional antennas
Gain: 3 dBi @ 2.4 GHz, 5 dBi @ 5 GHz

Interfaces
1x 100/1000Base-T Ethernet (RJ45) with 48V DC 802.3af PoE
1x DC power connector (5mm x 2.1mm, center positive)
Security
Integrated policy firewall (Identity Policy Manager)
Mobile device policies
Air Marshal: Real-time WIPS (wireless intrusion prevention system) with alarms
Guest isolation
Teleworker VPN with IPsec
PCI compliance reporting
WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
TKIP and AES encryption
VLAN tagging (802.1q)
Quality of Service
Wireless Quality of Service (WMM/802.11e)
DSCP (802.1p)
Layer 7 application traffic shaping and firewall
Mobility
PMK and OKC credential support for fast Layer 2 roaming
802.11r and 802.11k
Layer 3 roaming
LED Indicators
2 Ethernet status
1 power/booting/firmgrade upgrade status
Regulatory
Anatel (Brazil), FCC (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand)
RoHS
UL2043 (Plenum rating)
For additional country-specific regulatory information, please contact Meraki sales
Mean Time Between Failure (MTBF)
575,000 hours
Guarantee
Lifetime hardware warranty with advanced replacement included
Ordering Information
MR18-HW
Cisco Meraki MR18 Cloud Managed AP
MA-INJ-4-XX Cisco Meraki 802.3at Power over Ethernet Injector (XX = US, EU, UK or AU)
AC-MR-1-XX Cisco Meraki AC Adapter for MR Series (XX = US, EU, UK or AU)
Note: Cisco Meraki Enterprise license required.
