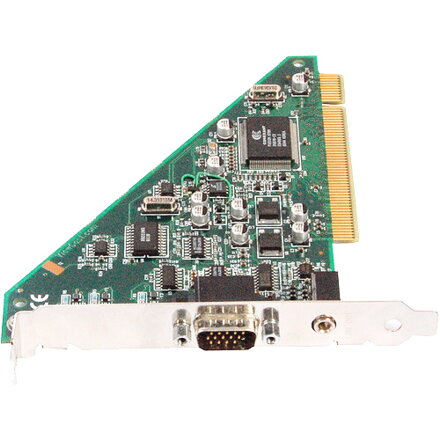

Osprey Video 210, PCI video strižňa

Bez video kábla.

PCI Analog Video Capture With Stereo Audio
The Osprey 210 video capture card offers legendary Osprey dependability in a single channel analog video card with unbalanced stereo audio input. In production for nearly 15 years and still in demand for mission critical delivery or legacy PC platforms.
Mission Critical Video Capture
 Security, such as ATM machines
 Medical and scientific equipment
 Surveillance equipment
Single Channel With Switchable Inputs
 1 composite (RCA)
 1 S-Video (mini-DIN)

Specifications
Description:
Single channel analog audio/video selectable inputs
Format:
PCI 32-bit/5 Volt:
Video Input:
Composite
S-Video
Video Connector:
Composite (BNC x 1)
S-Video (mini-DIN)
Video Modes:
NTSC/PAL
720 x 480 29.97, 30/i (NTSC)
852 x 480, 29.97, 30/i (NTSC Wide Screen)
720 x 576 25/i (PAL)
Wide Screen Signaling (WSS)

Audio Input:
Unbalanced stereo
Audio Output:
Unbalanced stereo line (3.5 mm)
Audio Connector:
Unbalanced stereo (RCA x 2)
Unbalanced (3.5 mini phono) stereo
Dimensions:
5.08" L x 4.20" H (12.90 cm L x 10.67 cm H)
Full-height/short
Weight:
≈ 71 g
Power Consumption:
2.45 W
Operating Temp Range:
0° to 40° C
Non-Operating Temp Range:
-40° to +75° C
Rel Humidity Operating:
Between 5 % and 80 % (noncondensing)
Rel Humidity Non-Operating:
95 % RH (non-condensing); gradient 30% per hour
Operating Altitude Range:
0 to 3,048 meters (10,000 feet)
Non-Operating Altitude Range:
0 to 15,240 meters (50,000 feet)
Compliance:
CE, FCC, ROHS, WEEE
