DELL Docking Station PR02X with USB3.0, 12TFY A00

Dell E-Port Plus Advanced Port Replicator with USB3.0

The E-Port Plus Port Replicator with USB 3.0 from Dell™ offers dual digital monitor capabilities along with legacy ports. This docking station includes a latest USB 3.0 technology enabled by Intel in Ivy Bridge. It has replaced the 2 USB 2.0 connectors with the USB 3.0. Plus, the Display Port 1.2 adds the ability to daisy chain displays (4 displays via 1 connector). Also it offers an adaptor complexity reduction. It has non-compromise station designed for enhanced usability at desk.

Highlights

Gets innovative with quick USB 3.0 technology enabled by Intel in Ivy Bridge
Adds the ability to daisy chain displays
Offers Adaptor complexity reduction

Compatibility

Dell Certified Parts undergo rigorous testing by qualified engineers to ensure compatibility and reliability in your Dell system
Dell's sustaining qualification process allows for testing and certifying the newest in technology on your Dell system

Quality

Dell uses only OEM grade quality components

The E-Port Plus Port Replicator with USB 3.0 from Dell™ offers dual digital monitor capabilities along with legacy ports. This docking station includes a latest USB 3.0 technology enabled by Intel in Ivy Bridge. It has replaced the 2 USB 2.0 connectors with the USB 3.0. Plus, the Display Port 1.2 adds the ability to daisy chain displays (4 displays via 1 connector). Also it offers an adaptor complexity reduction. It has non-compromise station designed for enhanced usability at desk. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

Designed For
Latitude E5270, E5430, E5440, E5460, E5470, E5530, E5540, E5570, E6220, E6230, E6330, E6430, E6430 ATG, E6430S, E6440, E6520, E6530, E6540, E7240, E7270, E7440, E7470

Expansion / Connectivity
Interfaces

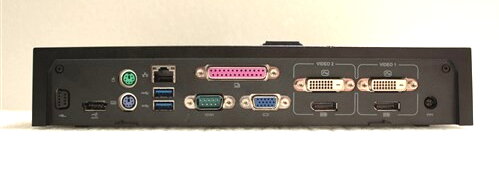

2x Display / video - Display Port - 20 pin Display Port ¦ 2x Display / video - DVI-D Single Link connectors ¦ 1x VGA Connector - 15pin ¦ 2x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1x eSATA / Hi-Speed USB - 11 pin USB/eSATA ¦ 3x USB 2.0 ¦ 1x Network - Ethernet - RJ-45 ¦ 1x Audio - output ¦ 1x Microphone ¦ 1x Serial Port Connector ¦ 1x Parallel Port Connector

Compatibility

This product is compatible with the following systems:

Latitude E6540
Latitude E7240
Latitude E7440
Latitude E6440
Latitude E5440
Latitude E5540
Latitude E5250
Latitude E5450
Latitude E5550
Latitude E7250
Latitude E7450
Precision 7710
Latitude E5470
Latitude E5570
Latitude E7270
Latitude E5270
Latitude E7470
Precision 7720
