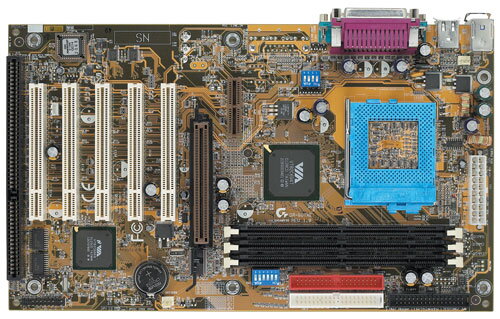

Gigabyte GA-6VTXE Rev 1.0, Socket 370

Universal socket 370 supports Intel® FC-PGA/FC-PGA2 Pentium® III (CopperMine/Tualatin)or other compatible processors
Supports CPU multiplier 3.0~9.5 for future processors
Auto/66/75*/83*/100/112*/124*/133/140*/150* MHz FSB
AUTO detect CPU voltage

Chipset

VIA VT82C694T
VIA VT82C686B

Memory

3 x 168-pin DIMM sockets
Supports PC-100 / PC-133 SDRAM and VCM SDRAM
Supports up to 1.5GB DRAM
Supports only 3.3V SDRAM DIMM
Supports 72bit ECC type DRAM integrity mode

Expansion Slots

1 x AMR (Audio Modem Riser) slot
1 x AGP slot supports 4X mode & AGP 2.0 compliant
5 x PCI slots supports 33MHz & PCI 2.2 compliant
1 x 16-bit ISA slot

I/O Controller

2 x UDMA ATA Bus Master IDE ports on board
1 x FDD on board
2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
2 x USB ports on board
IrDA header ready

H/W Monitoring

CPU/System fan revolution detect
CPU /System temperature detect
System voltage detect (Vcore,Vcc3,Vcc,+12V)
CPU overheat shutdown detect

BIOS

2Mbit flash RAM
AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinME/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
AC recovery ON/OFF control
Supports @BIOS™ Live Update

Form Factor

ATX , 4 layer PCB (30.5 x 18.1cm)

Other Features

Includes Wake-On-LAN header (WOL)
Includes Wake-On-Ring (WOR)
Includes 2 fan power connectors
Poly fuse for keyboard over-current protection
Supports Gigabyte EasyTune III™

Power

ATX power connector
Power-on by LAN, RTC, Modem & switch
Power-off by Windows 95/98/2000/ME/XP shut down & switch
