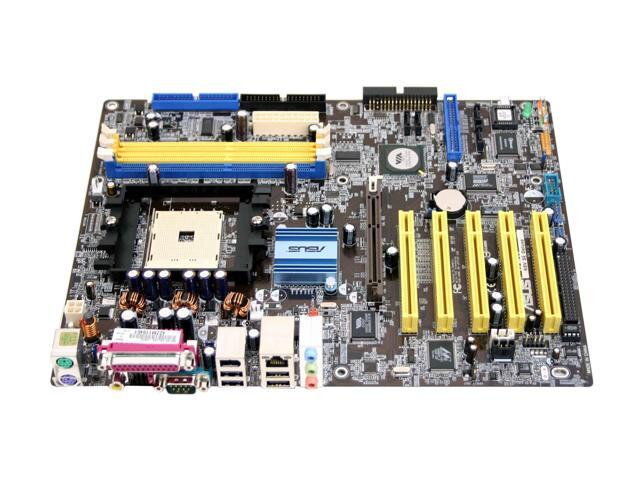

ASUS K8V SE Deluxe

Chipset Type
VIA K8T800
Compatible Processors
Athlon 64
Processor Socket
Socket 754
Max Bus Speed
800 MHz
Max Processors Qty
1
Manufacturer
Asus

Expansion / Connectivity

Expansion Slots
1 x ASUS Wi-Fi slot
5 x PCI
1 x AGP 8x (1.5 V)
1 x CPU
3 x DIMM 184-pin
Storage Interfaces
ATA-133 -connectors: 3 x 40pin IDC
SATA-150 -connectors: 4 x 7pin Serial ATA
Internal Interfaces
1 x floppy
2 x audio - 4 pin MPC

Storage Controller

RAID Level
RAID 0, RAID 0+1, RAID 1
Interface Type
ATA-133 / Serial ATA-150

Processor

Max Supported Qty
1
Installed Qty
0

Audio

Audio Codec
AD1980

Miscellaneous

Product Type
motherboard

Processor / Memory / Storage

Max Supported Qty
1

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller
Marvell Yukon 88E8001
Network
Gigabit Ethernet

Interface Provided

Qty
1, 8, 2
Type
FireWire, LAN (Gigabit Ethernet), serial, PS/2 keyboard, PS/2 mouse, SPDIF out, USB 2.0, audio line-out, audio line-out (center/subwoofer)/line-in, audio line-out (rear)/microphone, parallel
Connector Type
mini-jack

Video

Video Output
none

RAM

Max Supported Size
3 GB

Audio Output

Sound Output Mode
5.1 channel surround
Signal Processor
VIA VT8237
Type
sound card
Audio Codec
AD1980
Audio
6-channel

LAN

Network Interfaces
Gigabit Ethernet
Network Controller
Marvell Yukon 88E8001

Storage Controller (2nd)

Controller Interface Type
Serial ATA-150
RAID Level
RAID 0, RAID 1

Supported RAM

Bus Clock
400 MHz, 333 MHz, 266 MHz, 200 MHz
Registered or Buffered
Unbuffered
Speed
PC3200, PC2700, PC2100, PC1600
Technology
DDR
Max Size
3 GB
Supported RAM Integrity Check
ECC

Header

Brand
ASUS
Product Line
ASUS
Model
K8V SE Deluxe
Packaged Quantity
1
Compatibility
PC

Mainboard

Form Factor
ATX
Processor Socket
Socket 754
Compatible Processors
Athlon 64
Data Bus Speed
800 MHz
Chipset Type
VIA K8T800
Supported RAM Technology
DDR SDRAM
Supported RAM Speed
200 MHz, 266 MHz, 333 MHz, 400 MHz
Supported RAM Standard
PC1600, PC2100, PC2700, PC3200
Supported RAM Integrity Check
ECC
Supported RAM (Registered or Buffered)
unbuffered

Mainboard Features

BIOS Type
AMI
BIOS Features
ASUS EZ Flash, ASUS MyLogo2, DMI support, JumperFree, Multilingual BIOS, SMBIOS 2.3 support
Sleep / Wake Up
RTC (real-time clock) wake up, keyboard wake up, wake on LAN (WOL), wake on USB port, wake on ring (WOR)
Manual Settings
AGP slot voltage, CPU frequency, FSB ratio (CPU:memory), memory voltage
Hardware Monitoring
CPU core temperature, CPU core voltage, CPU fan tachometer, chassis fan tachometer, chassis temperature, system voltage
Hardware Features
ASUS POST Reporter, ASUS Q-Fan, C.P.R. (CPU Parameter Recall), CrashFree BIOS 2

Interfaces

Storage
ATA-133 (RAID), Serial ATA-150 (RAID)
USB 3.0 / FireWire
FireWire

Expansion Slots

Total Qty
1, 3, 5
Voltage
1.5 V
Free Qty
1, 3, 5
Type
AGP 8x, CPU, DIMM 184-pin, PCI

Dimensions & Weight

Width
12 in
Depth
9.6 in

Software

Software Included
ASUS EZ Flash, ASUS MyLogo2, ASUS PC Probe, PC-cillin 2002, drivers & utilities

Slot Required

Type
none

Storage Interfaces

Interface
ATA-133, Serial ATA-150
Connector(s)
3 x 40pin IDC, 4 x 7pin Serial ATA

Service & Support Details

Type
limited warranty
Full Contract Period
3 years

Internal Interfaces

Type
audio, floppy
Connector Type
4 pin MPC
Qty
1, 2

Features

Manual Settings
CPU frequency, memory voltage, AGP slot voltage, FSB ratio (CPU:memory)
BIOS Type
AMI
Hardware Features
ASUS POST Reporter, ASUS Q-Fan, C.P.R. (CPU Parameter Recall), CrashFree BIOS 2
BIOS Features
DMI support, Multilingual BIOS, JumperFree, ASUS MyLogo2, SMBIOS 2.3 support, ASUS EZ Flash
Sleep / Wake Up
Keyboard wake up, RTC (real-time clock) wake up, wake on LAN (WOL), wake on USB port, wake on ring (WOR)
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage

General

Manufacturer
Asus
