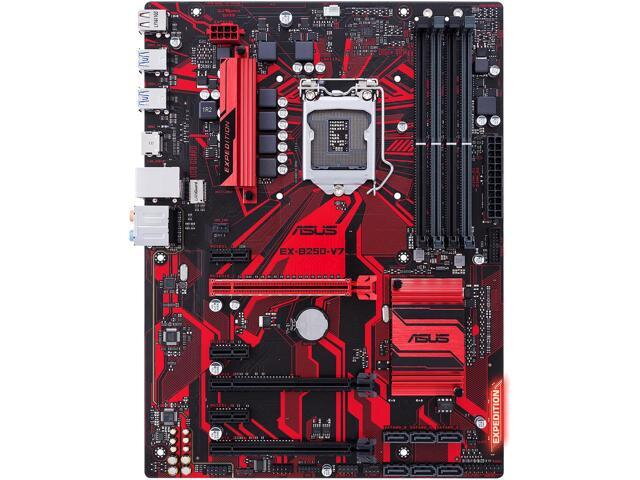

ASUS EX-B250-V7 mainboard, Socket LGA1151

CPU
Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® B250
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Maximum shared memory of 1024 MB
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, red)
2 x PCIe 3.0/2.0 x16 (x4 mode, black)
3 x PCIe 3.0/2.0 x1
Storage
Intel® B250 Chipset :
6 x SATA 6Gb/s port(s)
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard
Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
Audio Feature :
USB Ports
Intel® B250 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® B250 Chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 4 Phase digital power design
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
- Anti-theft memory - Locked-down memory for everyday security
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration Separate layer for left and right track, ensuring both sound deliver equal quality
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Slot
Back I/O Ports
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 Type-A
4 x USB 2.0
6 x Audio jack(s)
Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x W_Pump+ Header

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.0, ACPI 6.0, ASUS EZ Flash 3, CrashFree BIOS 3, F12 I café super mode
Manageability
DMI 3.0, WOL by PME
Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *1
Windows® 7 32-bit *1
Windows® 7 64-bit *1
Form Factor
ATX Form Factor
12 inch x 9 inch ( 30.48 cm x 22.86 cm )
Note
*1 Windows® 8.1 64-bit and Windows® 7 32 / 64-bit are only supported when using 6th Generation Intel® Processors
