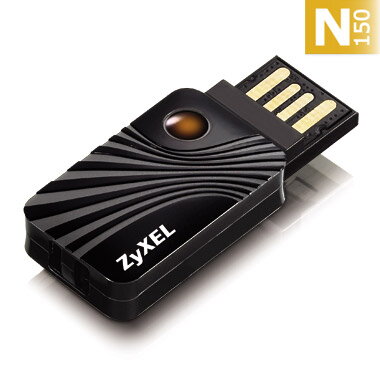

ZyXEL NWD2105

Ultra-compact design for optimal portability • 802.11n compliance with data transfer rates of up to 150 Mbps*• Support soft AP mode• Support multiple applications with WMM QoS• One-touch WPS button for easy wireless security setup• Link your PC/laptop with Wi-Fi Direct supported devices

BenefitsUltra-compact design for optimal portabilityThe compact, lightweight design of the ZyXEL NWD2105 Wireless N-lite USB Adapter offers excellent portability. Users can easily plug NWD2105 to a USB connector on desktop or laptop computers to upgrade the network speed instantly. In addition, the bundled USB cable makes it convenient for users to adjust the direction of NWD2105.802.11n compliance with data transfer rates of up to 150 Mbps*The NWD2105 brings you faster wireless connection than the existing 802.11g standard. With the data transfer rate of up to 150 Mbps*, which is three times faster than the 802.11g standard, the NWD2105 offers you the high-speed connection everywhere under Wi-Fi coverage. It not only provides a high-speed network capability, but also works with your existing 802.11 b/g network.Soft AP mode creates a wireless networkWith the built-in soft AP function, the NWD2105 can help users to create wireless networks instantly. Just plug NWD2105 into a desktop or laptop computer connecting to a cable or xDSL modem, all other wireless-capable devices can connect to the Internet through NWD2105.Support multiple applications with WMM QoSWith WMM QoS certification, the NWD2105 is an excellent solution for you to deliver time-sensitive applications such as video and voice streaming. It significantly enhances your experience on audio, video and voice applications by prioritizing data traffic, so you can enjoy and share multimedia contents with your family or friends without interruption.One-touch WPS button for easy wireless security setupEstablishing a secure wireless network is no longer a hassle. The Wi-Fi Protected Setup (WPS) feature takes just a few seconds to set up a secure wireless network without complicated procedures. A click on the WPS button is all it needs to set up a secure wireless network easily.

System Specifications• Compliant with 802.11n standard• Backwards compatible with 802.11 b/g• Wireless data transfer rate:■Transmit: 150 Mbps*■Receive: 150 Mbps*• Wi-Fi Multimedia (WMM) support• Wireless security: ■WEP, WPA (WPA-PSK), WPA2 (WPA2-PSK), 802.1X■WPS hardware button, WPS software feature• Soft AP mode support• Wireless peer-to-peer connection supportHardware Specifications• Operation voltage: DC 5 V• One WPS button with Link/Act LED• One USB 1.1/2.0 port• Power consumption:■Transmit: 300 mA■Receive: 160 mA

Physical Specifications• Item dimensions (WxDxH): 36 x 18 x 6 mm (1.42" x 0.71" x 0.24")• Item weight: 3 g (0.01 lb.) • Packing dimensions (WxDxH): 95 x 20 x 135 mm (3.74" x 0.79" x 5.31")• Packing weight: 81 g (0.18 lb.)Environmental SpecificationsOperating Environment• Temperature: 0°C to 50°C (32°F to 122°F)• Humidity: 20% to 90% (Non-condensing)Storage Environment• Temperature: -30°C to 70°C (-22°F to 158°F)• Humidity: 10% to 90% (Non-condensing)Certification• FCC/CE/IC/NCC/C-Tick• Wi-Fi, WMM, WPS• Windows XP/Vista/7

OS Support• Microsoft Windows XP/Vista/7/8/8.1 (32-bit/64-bit)• Mac OS X v10.6/v10.7/v10.8/v10.9Package Contents• Wireless USB Adapter• Support CD• Quick start guide• USB extension cable• Warranty card
