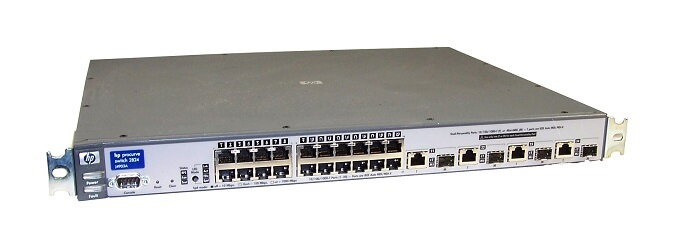

HP ProCurve switch 2824 J4903A

Summary

The ProCurve 2824/2848 Switch series consists of two switches: the 24-port ProCurve Switch 2824 with 20 10/100/1000 ports, and the 48-port ProCurve Switch 2848 with 44 10/100/1000 ports. In addition, each switch has 4 dual-personality ports for RJ-45 10/100/1000 or mini-GBIC fiber 1000 connectivity. The 2824/2848 Switch series is ideal for secure 10/100 and Gigabit connectivity, and it offers access security and advanced prioritization and traffic-monitoring capabilities. With support for IP static routing, the 2824/2848 Switch series is well-suited for environments that need basic routing at the edge of the network.

Related products

Technical Specifications
Connectivity
Routing/switching capacity
48 Gbps
Networking
Address table size
16,000 entries
Management features
ProCurve Manager (included); ProCurve Manager Plus; command line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
Communications
RFC 783 TFTP; RFC 951 BootP; RFC 1542 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; RFC 1492 TACACS+; RFC 2138 RADIUS; RFC 2866 RADIUS accounting; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLANs; IEEE 802.1Q VLAN tagging; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2096 IP Forwarding Table MIB; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); XRMON; sFlow; RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB
Latency
<5.4 µs (64-byte packets)
Memory and processor
Processor type and speed: Motorola Power PC MPC8245, 266 MHz; Flash capacity: 8 MB; SDRAM: 64 MB
Performance
Throughput
up to 34.65 million pps (64-byte packets)
Ports
External I/O ports
20 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T) Media Type: Auto-MDIX; Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 1 RS-232C DB-9 console port; 4 dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port or an open mini-GBIC slot (for use with mini-GBIC transceivers)
Power
Power availability
0.6/0.3 A
Power consumption
50 W
Power requirements
100–127 VAC/200–240 VAC; 50/60 Hz
Rack
Rack mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only.

Environmental information
Operating temperature range 0° to 55°C
Heat dissipation 170 BTU/hr
Acoustic pressure emissions <53 dB; DIN 45635T.19 per ISO 7779
Operating altitude 4,600 m

Compliance information
Electromagnetic compatibility FCC Class A; EN 55022/CISPR 22 Class A; VCCI Class A
Safety cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 1950 3rd edition
Compliance industry standards EN: EN55024, CISPR 24; ESD: IEC 61000-4-2; 4 kV CD, 8 kV AD; Radiated: IEC 61000-4-3; 3V/m; EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); Surge: IEC 61000-4-5; 1 kV/2 kV AC; Conducted: IEC 61000-4-6; 3V; Power frequency magnetic field: IEC 61000-4-8; 1A/m, 50 or 60 Hz; Voltage dips and interruptions: IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods; Harmonics: EN61000-3-2, IEC61000-3-2; Flicker: EN61000-3-3, IEC61000-3-3

Physical information
Product weight 4.63 kg
Product dimensions (W x D x H) 43.99 x 36.58 x 4.45 cm
