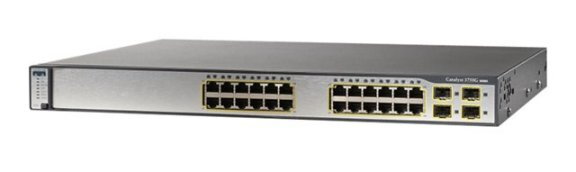

Cisco Catalyst 3750G-24TS

Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3750G-24TS-S1U
Product Type Managed, Stackable 24 ports L3 Switch
Form Factor Fixed, Rack Mountable 1U, Stackable/Clustering
Switch Port density - Uplinks 24 x 10/100/1000 Ethernet Ports + 4 x SFP
Performance Switching capacity : 32 Gbps
Forwarding performance : 38.7 mpps
MAC Address Table Size 12K entries
Jumbo Frame Support Yes
Max Number of Stacks 9
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Cisco StackWise Technology, Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s
DRAM Memory 128 MB
Flash Memory 32 MB Flash
LED Status Lights Indicators Link activity, port transmission speed, port duplex mode, bandwidth utilization %, system, RPS (Redundant Power Supply)
Connectivity / Expansion Slots
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x console - RJ-45 - management
Network stack device : 1 x x 2
4 x SFP (mini-GBIC)
Power Supply Specifications
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 100 Watt
Features Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width 44.5 cm
Depth 37.8 cm
Height 4.4 cm
Weight 5.5 kg
MTBF 221,150 hour(s)
Compliant Standards CE, FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, FCC Part 15, MIC, AS/NZS 3548
