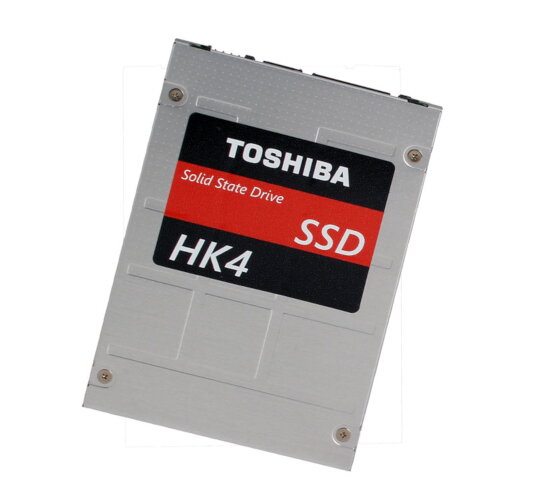

Toshiba THNSN8800PCSE E1, 800GB SSD, MLC

HK4E SERIES ENTERPRISE SATA SSD
Specifically engineered for value-endurance workloads, the HK4E eSSD delivers high reliability, high performance and low power usage. Data center and enterprise applications benefit from the excellent quality of service, provided by the series. The 7.0mm height drive is available in high capacities up to 1.6TB and supports 6.0 Gbit/s SATA interface. Each model is provided with enterprise-class features such as Power Loss Protection.

KEY FEATURES
Capacities up to 1.6TB
SATA 6.0 Gbit/s Interface 3 DWPD Low Operating
Power
Power Loss Protection
End to end data protection
Hot-Plug/OS-Aware Hot Removal

APPLICATIONS OLTP VDI Data center Database E-Commerce E-Mail/MessagingServer

SPECIFICATIONS

Standard Models 2.5-inch(7.0mmH)
Connector Type Standard SATA
Memory TOSHIBA MLC NAND Flash Memory
Interface ACS-3, SATA revision 3.2,1.5/3/6 Gbit/s
Capacity 800 GB
Performance
Sequential Read: 524 MB/s{500 MiB/s}
Sequential Write: 503 MB/s{480 MiB/s}
Random Read: 75,000 IOPS
Random Write: 30,000 IOPS
Supply Voltage 5.0 V ±5 %
Power Consumption
Active: 4.5 W typ.
Idle: 1.2 W typ.
Temperature
Operating: 0 °C-55 °C
Non-operating: -40 °C-70 °C
Shock
Operating / Non-operating: 9,800 m/s2{1000 G} at 0.5 ms
Vibration
Operating: 21 m/s2{2.17 Grms} at 100-800 Hz
Non-operating: 159 m/s2{16.3 Grms} at 20-2,000 Hz
Reliability
Mean Time to Failure (MTTF): 2,000,000 hours
Product Life: Approximately 5 years
Size 100.45 mm(Length) x 69.85 mm(Width) x 7.0 mm(Height)
Weight 60 g Max
More Features
28-bit LBA mode commands and 48-bit LBA mode commands support
Automatic retries and corrections for read errors
NCQ (Native Command Queuing) function supported
Compliance
UL,cUL(CSA), TÜV, KC, FCC, BSMI, CE, RCM, ISED, VCCI

Interface Speed 6 Gbit/s Max
Sequential Read 64KiB, QD=32524 MB/s{500 MiB/s}
Sequential Write 64KiB, QD=32503 MB/s{480 MiB/s}

Random Read 4KiB, QD=3275,000 IOPS
Random Write 4KiB, QD=3230,000 IOPS
