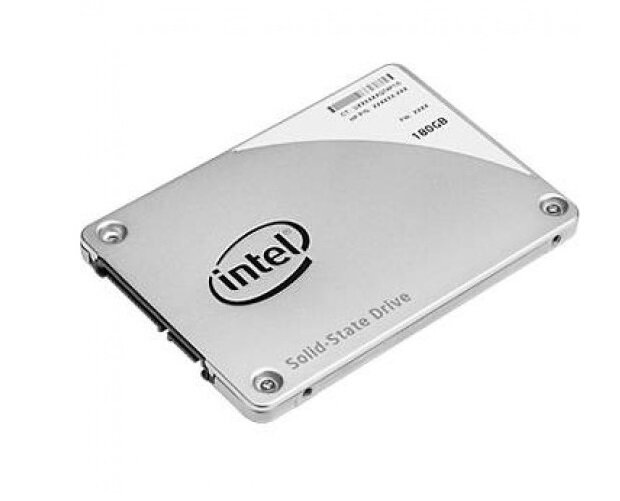

Intel® SSD Pro 1500 Series 180GB, 2.5in SATA 6Gb/s, 20nm, MLC

Essentials

Product Collection Intel® SSD Pro 1500 Series
Code Name Products formerly Sierra Star
Capacity 180 GB
Status Launched
Launch Date Q3'13
Lithography Type 20 nm

Performance

Sequential Read (up to) 540 MB/s
Sequential Write (up to) 490 MB/s
Random Read (8GB Span) (up to) 41000 IOPS
Random Write (8GB Span) (up to) 80000 IOPS
Latency - Read 80 µs
Latency - Write 85 µs
Power - Active 195 mW
Power - Idle 125 mW

Reliability

Vibration - Operating 2.17 GRMS (5-700 Hz) Max
Vibration - Non-Operating 3.13 GRMS (5-800 Hz) Max
Shock (Operating and Non-Operating) 1,500 G (Max) at 0.5 msec
Operating Temperature Range 0°C to 70°C
Mean Time Between Failures (MTBF) 1,200,000 Hours
Uncorrectable Bit Error Rate (UBER) <1 sector per 10^16 bits read

Package Specifications

Weight < 78 grams
Form Factor 2.5" 7mm
Interface SATA 3.0 6Gb/S

Advanced Technologies

Enhanced Power Loss Data Protection No
Hardware Encryption AES 256 bit
High Endurance Technology (HET) No
Temperature Monitoring and Logging No
End-to-End Data Protection Yes
Intel® Smart Response Technology Yes
Intel® Rapid Start Technology Yes
Intel® Remote Secure Erase Yes
